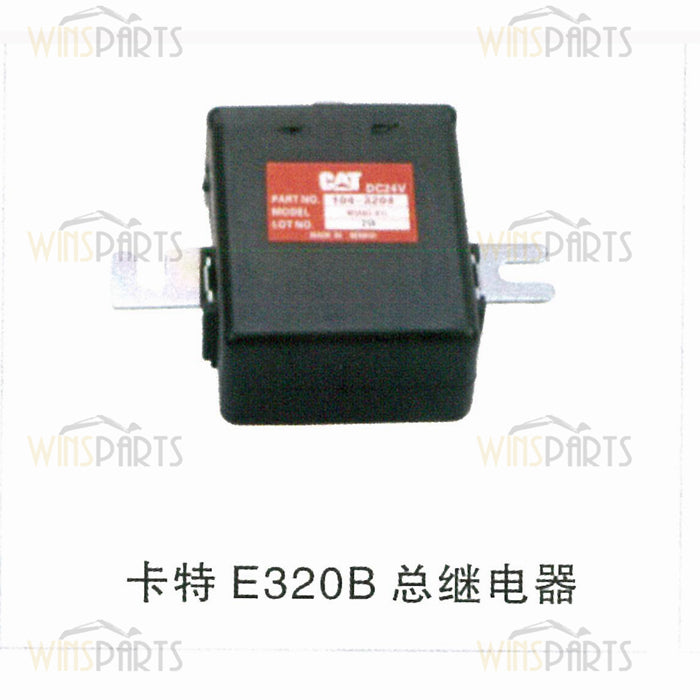

104-3204 1043204 CAT DC24V Hour Timer Relay Switch Relay CONTROLLER-AIR For Caterpillar E320B 315B 317B 318B 321B 322B Spare Parts
134-0253: PANEL GP-CIRCUIT BREAKER
PANEL GP-CIRCUIT BREAKER
134-0253 PANEL GP-CIRCUIT BREAKER
S/N 7JR1-1214; 1XS1-UP; 2AS1-UP; 5MS1-UP; 9WS1-UP; 6LW1-UP; 3YZ1-UP
PART OF 116-0208 BATTERY & WIRING GP
1340253 PANEL GP-CIRCUIT BREAKER Parts scheme
Parts for your 320B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 128-8934 [1] BRACKET AS
2. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 111-4874 [1] COVER
5. 9S-0174 [1] CIRCUIT BREAKER AS (60-AMPERE)(MAIN)
1H-3244 [2] LOCKWASHER
7X-3182 [2] BOLT (1/4-28X0.5-IN)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
6. 3E-8320 [1] PLATE-INSTRUCTION (BATTERY)
7. 7N-0718 Y [1] SWITCH GP-DISCONNECT (BATTERY)
8. 6V-5645 [4] SCREW-MACHINE (10-32X0.87-IN)
9. 8T-0328 [4] WASHER-HARD (5.5X10X1-MM THK)
10. 3T-0376 [1] SWITCH AS-MAGNETIC (MAIN RELAY)
11. 8T-6411 M [12] SCREW-MACHINE (M6X1X12-MM)
12. 9X-8256 [28] WASHER (6.6X12X2-MM THK)
13. 5C-2890 M [2] NUT (M6X1-THD)
14. 125-1302 Y [1] SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
15. 095-0742 M [2] SCREW-MACHINE (M6X1X16-MM)
16. 111-4870 [1] TIMER AS-ON DELAY
17. 7Y-8242 [1] RESISTOR
18. 8C-7581 M [5] SCREW-MACHINE (M4X0.7X8-MM)
19. 096-6166 [5] WASHER-HARD (4.5X9X1-MM THK)
20. 111-4826 [1] WIRE AS
21. 111-4831 [1] WIRE AS
22. 111-4830 [1] WIRE AS
23. 111-4832 [1] CABLE AS
24. 111-4833 [1] CABLE AS
25. 111-4829 [1] WIRE AS
26. 121-1023 [1] BLOCK-TERMINAL
27. 102-8016 [1] RESISTOR AS (BACKUP)
28. 128-8936 [1] WIRE AS
29. 9S-0174 [1] CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)
1H-3244 [2] LOCKWASHER
7X-3182 [2] BOLT (1/4-28X0.5-IN)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
30. 7X-2619 M [10] BOLT (M6X1X10-MM)
31. 104-3204 [1] CONTROLLER-AIR
32. 133-7223 [3] CLIP
33. 116-0114 [1] SWITCH AS-MAGNETIC (24-VOLT)(HEATER RELAY)
34. 128-8938 [1] WIRE AS
35. 3S-2093 [7] STRAP-CABLE
36. 9R-7941 [1] SOCKET AS
37. 128-8937 [1] WIRE AS
38. 135-9848 [1] HARNESS AS
39. 133-7222 [1] CLIP
40. 111-4871 [1] RELAY (24-VOLT)(HORN)
41. 111-4871 [1] RELAY (24-VOLT)(BOOM LAMP)
42. 111-4871 [1] RELAY (24-VOLT)(CAB/CHASSIS LAMP)
43. 111-4871 [1] RELAY (24-VOLT)(HYDRAULIC LOCK SOLENOID)
44. 111-4871 [1] RELAY (24-VOLT)(NEUTRAL START)
M METRIC PART
Y SEPARATE ILLUSTRATION
