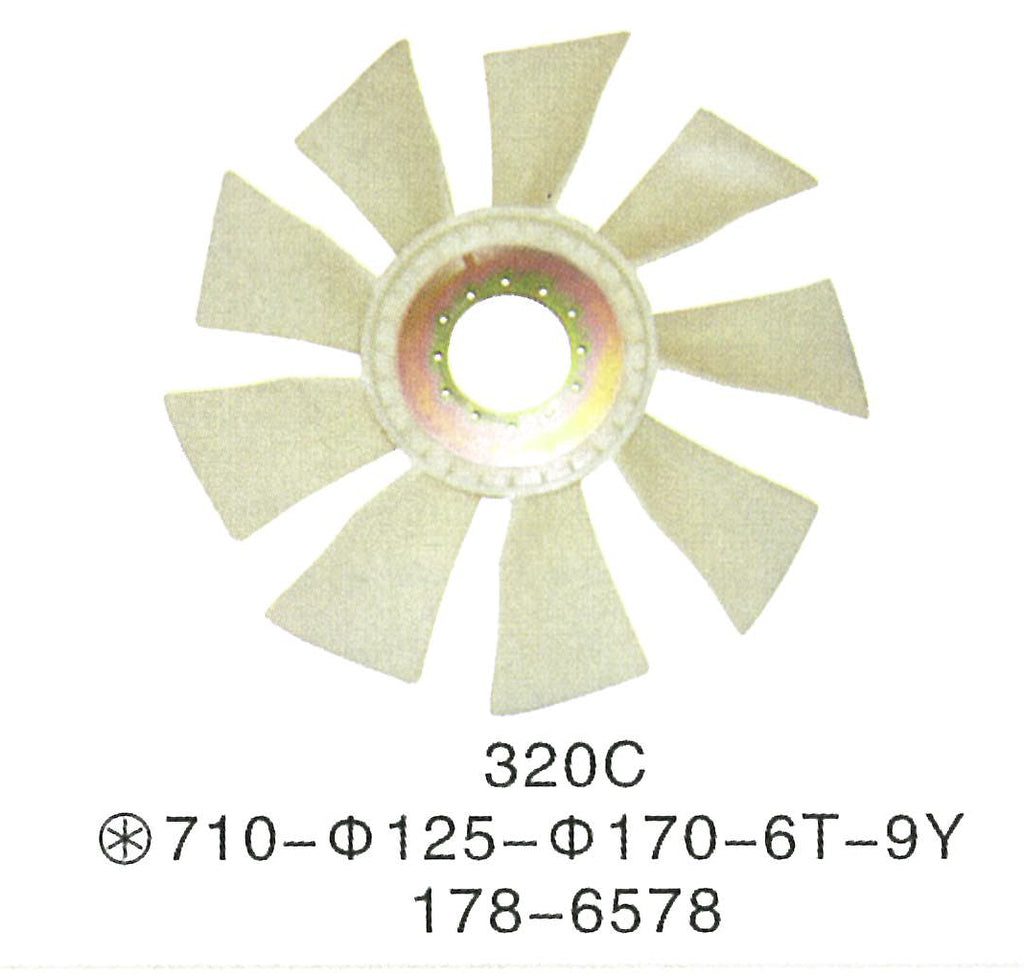

178-6578 1786578 CAT Mitsubishi 3066 ENGINE Fan Blade FAN COOLING Caterpillar 318C 319C 320C E320C Excavator Parts
178-6578 1786578 CAT Mitsubishi 3066 ENGINE Fan Blade FAN COOLING Caterpillar 318C 319C 320C E320C Excavator Parts
EXCAVATOR 318C 319C 320C 320C FM Caterpillar
178-6526: FAN GP-SUCTION
FAN GP-SUCTION
178-6526 FAN GP-SUCTION
S/N 7JK1-UP
PART OF 162-6351, 205-6731 ENGINE AR
1786526 FAN GP-SUCTION Parts scheme
Parts for your 320C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 5I-7595 [1] SPACER (81MM)
2. 178-6578 [1] FAN (6 BLADES)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 7X-0796 [4] LOCKWASHER
5. 8T-4198 M [4] BOLT (M10X1.5X100-MM)
M METRIC PART
#SEBP29010049
205-6797: LINES GP-WATER
LINES GP-WATER
205-6797 LINES GP-WATER
S/N 7JK1-UP
PART OF 162-6351, 205-6731 ENGINE AR
Type 1
2056797 LINES GP-WATER Parts scheme
Parts for your 320C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 8T-6912 M [3] BOLT (M8X1.25X50-MM)
2. 5I-7578 [1] SENDER-TEMPERATURE (WATER)
3. 5I-7572 [1] GASKET
4. 5I-7735 [1] GASKET
5. 5I-8010 [1] REGULATOR-TEMPERATURE (COOLANT)
6. 5I-8056 [1] PLUG
7. 095-8638 [17] WASHER-SPRING
8. 205-6795 [6] GASKET
9. 178-6579 [1] PIPE AS
10. 125-2981 [1] COVER AS
10A. 5I-7655 [1] PIPE
11. 154-9024 [1] VALVE-SAMPLING
12. 5I-7646 [1] ELBOW
13. 2S-3440 [2] CLAMP-HOSE
14. 5I-7699 [1] HOSE
15. 095-1663 [1] SEAL-O-RING
16. 8T-4908 M [13] BOLT (M8X1.25X25-MM)
17. 096-9532 [1] WASHER (15.8X22.5X2-MM THK)
18. 8T-4177 M [1] BOLT (M8X1.25X90-MM)
19. 196-7975 [1] SENSOR GP-TEMPERATURE
20. 157-0670 [1] CAP-DUST
M METRIC PART
