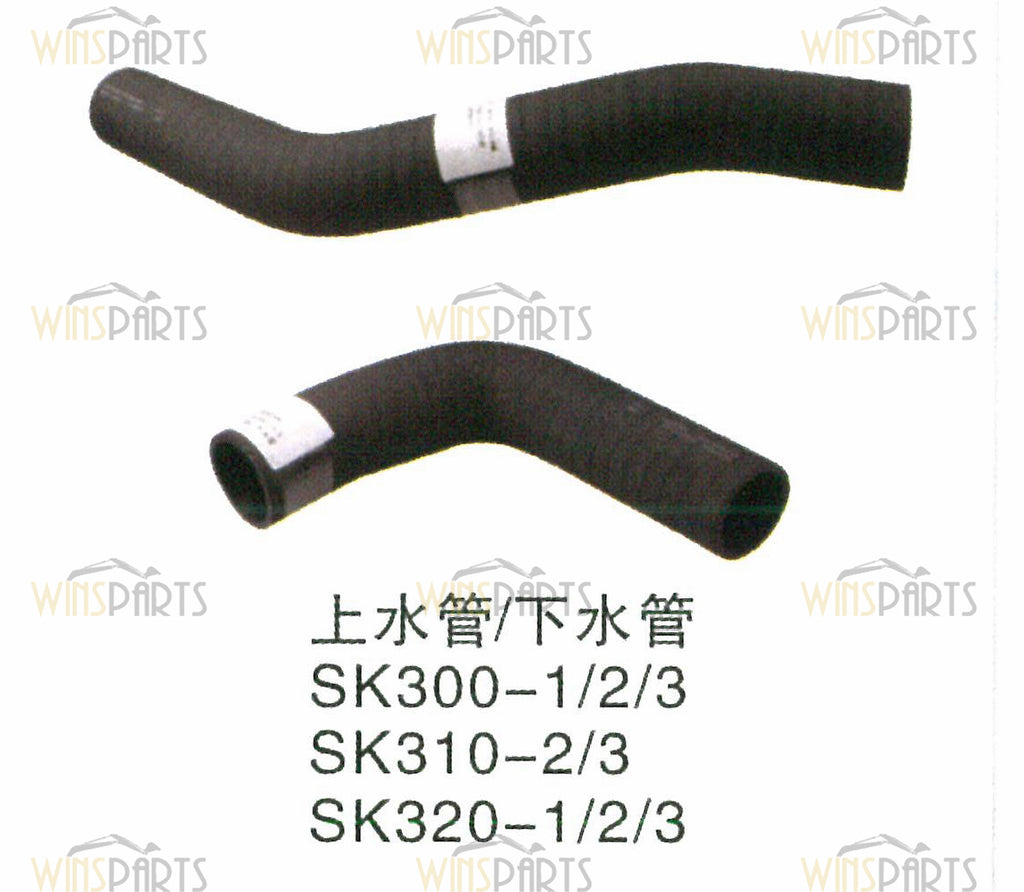

2444R2441 2444R2509 Water Radiator Hose Kobelco SK300LC-2

2444R2441 2444R2509 Water HOSE Upper TUBE Lower Radiator Hose Kobelco SK300LC-2 SK300LC-3 SK300-3 Excavator Parts

Product Description

• Part Number: 2444R2441 2444R2509

• Description: Water Radiator Hose Kobelco SK300LC-2

• Engine Brand: ISUZU/HINO/MISTUBISHI/YANMAR

• Excavator Brand: New Holland KOBELCO/HITACHI/CAT/KOMATSU

• Place of Origin:China/Japan

• Packing: Original packing or Neutral packing

2444R2441 2444R2509 Water HOSE Upper TUBE Lower Radiator Hose Kobelco SK300LC-2 SK300LC-3 SK300-3 Excavator Parts

34 1 VAME050910 HOSE HOSE
33 1 VAME058989 HOSE HOSE
15 1 VAMS666040 CLAMP CLIP
14 1 VAMS666012 HOSE CLAMP CLIP
4 ZW26X20000 LOCK WASHER , ASN LC03544
4 ZW26X20000 LOCK WASHER , ASN YC00956
75 4 ZW22X20000 LOCK WASHER ID 20 x OD 33.8 x Th 5.1mm, BTW LC03201 & LC03543
75 4 ZW22X20000 LOCK WASHER ID 20 x OD 33.8 x Th 5.1mm, BTW YC00901 & YC00955
74 1 24100N7085F3 PUMP PUMP ASSY, CONNECT SEE FIG.05-005
1 2432R322 CLIP , ASN LC03544
1 2432R322 CLIP , ASN YC00956
69 1 2432R316 , BTW LC03201 & LC03543
69 1 2432R316 , BTW YC00901 & YC00955
68 3 2432R226D9 CLIP
67 6 ZC15X01500 CLIP
66 1 2444R2492D200 HOSE 2000mm Long (78-3/4 in)
65 1 2444R2492D450 FLEXIBLE HOSE 4500mm Long (177-5/32 in)
64 1 2444R2492D400 FLEXIBLE HOSE 4000mm Long (157-31/64)
61 1 ZN18C12010 NUT M12x1.75mm
60 1 ZN18C10008 NUT M10x1.50mm
59 4 ZS18C10020 SCREW M10x1.50x20mm
58 4 ZW13H22000 WASHER ID 22 x OD 44 x Th 6.0mm
57 4 ZW13H12000 WASHER
56 1 ZW16X12000 WASHER ID 12 x OD 24 x Th 2.3mm
55 4 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm
5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, ASN LC03544
5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, ASN YC00956
53 1 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, BTW LC03201 & LC03543
53 1 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, BTW YC00901 & YC00955
10 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, ASN LC03544
10 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, ASN YC00956
52 9 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, BTW LC03201 & LC03543
52 9 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, BTW YC00901 & YC00955
51 1 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
50 4 ZW22X12000 LOCK WASHER ID 12 x OD 21.5 x Th 3.0mm, BTW LC03201 & LC03543
50 4 ZW22X12000 LOCK WASHER ID 12 x OD 21.5 x Th 3.0mm, BTW YC00901 & YC00955
49 1 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm, BTW LC03201 & LC03543
49 1 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm, BTW YC00901 & YC00955
48 1 ZS18C06014 SCREW M06x1.0x14mm
47 3 2420T6787 SCREW M12x1.75x20mm (Incls. Washer & Lockwasher)
2 ZS18C12030 SCREW M12x1.75x30mm, ASN LC03544
2 ZS18C12030 SCREW M12x1.75x30mm, ASN YC00956
46 2 ZS13C12030 SCREW M12x1.75x30mm, BTW LC03201 & LC03543
46 2 ZS13C12030 SCREW M12x1.75x30mm, BTW YC00901 & YC00955
2 ZS18C12025 SCREW M12x1.75x25mm, ASN LC03544
2 ZS18C12025 SCREW M12x1.75x25mm, ASN YC00956
45 2 ZS13C12025 SCREW M12x1.75x25mm, BTW LC03201 & LC03543
45 2 ZS13C12025 SCREW M12x1.75x25mm, BTW YC00901 & YC00955
44 4 ZS18C20045 SCREW M20x2.50x45mm
43 1 ZS18C12040 SCREW M12x1.75x40mm
42 2 ZS18C10030 SCREW M10x1.50x30mm
41 2 ZS18C10025 SCREW M10x1.50x25mm
40 5 ZS18C10014 SCREW M10x1.50x14mm
39 1 2432R233D1 CLIP 37x12x40mm
38 1 2479Z2596 INSULATOR
37 1 2479Z2449 INSULATOR
36 5 2432R233D3 CLIP 50x16x60mm
35 1 2444Z1293D10 LUBE NIPPLE Nipple, Hose -- 3/8" PTx46mm Long
31 1 2420Z795D2 FLEXIBLE HOSE
28 1 4018Z1D1 TUBE
27 1 NSS NOT SERVICED SEPARATELY HOSE (RADIATOR PART)
26 1 NSS NOT SERVICED SEPARATELY HOSE (RADIATOR PART)
25 1 2444R1148 FLEXIBLE HOSE
24 1 2444R2509 FLEXIBLE HOSE
22 1 2432R225D7 CLIP
21 2 2432Z290D3 CLIP Wire Ties -- 154mm Long
20 6 2432Z290 CLIP Wire Ties -- 185mm Long
19 2 ZC15X01000 CLIP
18 8 ZC15X08000 CLIP
17 1 ZC15X10500 CLIP
16 1 ZC15X13000 CLIP CLIP
13 1 2416T26102 SUPPORT
12 1 2432T2492 CLAMP
11 1 2416T25631 STAY
10 1 2416T25630 STAY
9-2 1 247922450 INSULATOR
9-1 1 2418P25377 PLATE PLATE
g 1 2418T23042F1 PLATE
8 1 2489U268F1 SENDER UNIT
7-11 1 2446R353S11 SWITCH
2 2446R285S10 PACKING , ASN LC03542
2 2446R285S10 PACKING , ASN YC01001
7-10 2 2446R353S10 PACKING , BTW LC03201 & LC03541
7-10 2 2446R353S10 PACKING , BTW YC00901 & YC01000
7-9 2 2446R353S9 NUT
7-6 1 2446R353S6 VALVE
1 2446R285S5 BODY ASSY, ASN LC03542
1 2446R285S5 BODY ASSY, ASN YC01001
7-5 1 2446R353S5 BODY ASSY, BTW LC03201 & LC03541
7-5 1 2446R353S5 BODY ASSY, BTW YC00901 & YC01000
7-3 1 2446R353S3 ELEMENT
7-2 1 2446R353S2 PACKING
7-1 1 2446R353S1 COVER
1 2446R285F1 ELEMENT , ASN LC03542
1 2446R285F1 ELEMENT , ASN YC01001
7 1 2446R353F1 AIR CLEANER , BTW LC03201 & LC03541
7 1 2446R353F1 AIR CLEANER , BTW YC00901 & YC01000
6-4 1 2427U203S3 LABEL
6-3 1 2427U203S6 SWITCH Radiator Over Flow Level
6-2 1 2427U1416S2 CAP
6-1 1 2427U1416S1 TANK
6 1 2427U1416F1 CONTAINER
5 1 2446U234F2 SEPARATOR
4 1 2418P23183 EXHAUST SYSTEM PIPE
3 1 2452U432F2 RADIATOR
2 1 24100J14826F1 MTG. ENGINE SEE FIG.05-004
24100J14828F4 POWER-PLANT ASSY
23 1 2444R2441 FLEXIBLE HOSE
