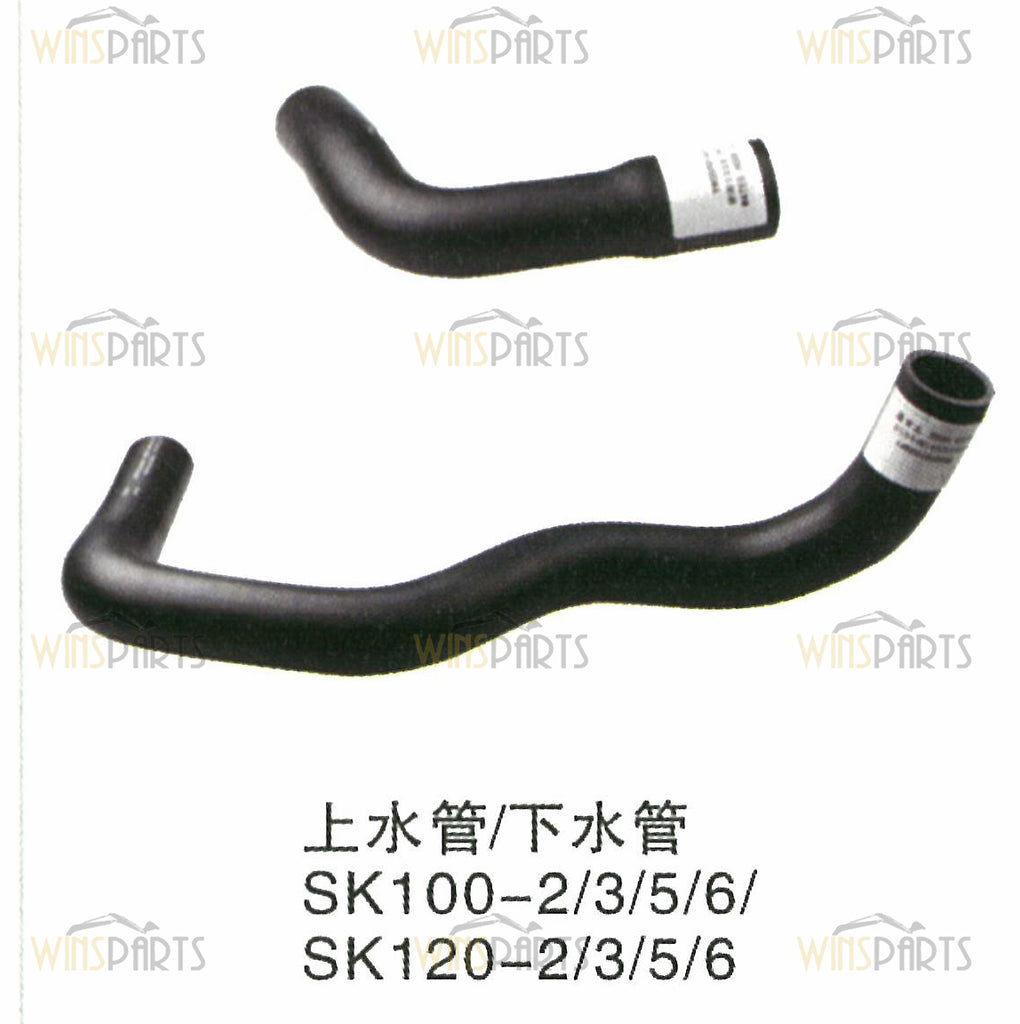

2444R2457 2444R2458 Engine Water FLEXIBLE HOSE Radiator Kobelco SK100 SK120LC

2444R2457 2444R2458 Engine Water FLEXIBLE HOSE Upper TUBE Lower Radiator Hose Kobelco SK100 SK120LC SK100-3 Excavator Parts

Product Description

• Part Number: 2444R2457 2444R2458

• Description: Engine Water FLEXIBLE HOSE Radiator Kobelco SK100 SK120LC

• Engine Brand: ISUZU/HINO/MISTUBISHI/YANMAR

• Excavator Brand: New Holland KOBELCO/HITACHI/CAT/KOMATSU

• Place of Origin:China/Japan

• Packing: Original packing or Neutral packing

2444R2457 2444R2458 Engine Water FLEXIBLE HOSE Upper TUBE Lower Radiator Hose Kobelco SK100 SK120LC SK100-3 Excavator Parts

1 2418Z1333D2 TUBE 19.5mm ID x 23.8mm OD x 900mm Length, Protective Plastic, Applicable: YW04769-
124 2 2418Z773D2 TUBE, Remarks: YW04601-04768
123 8 ZN18C08007 NUT M08x1.25mm
122 5 ZN18F10008 NUT M10x1.25mm
1 2414P9282 GUARD, Applicable: YW05436-
121 1 2414P8376 GUARD, Applicable: YW04601-05435
120 1 2416N6106 BRACKET
119 4 ZW13H16000 WASHER ID 17 x OD 32 x Th 4.5mm
112 4 ZS18C10035 SCREW M10x1.50x35mm
1 2418P28426 RIGID TUBE PIPE, EXHAUST, Applicable: YW05149-
104 1 2427P3520 PIPE, EXHAUST, Applicable: YW04601-05148
103 1 2418Z759D1 HOSE TUBE, VINYL
102 1 2418T18152D9 SPACER
101 2 2420T6788 SCREW M10x1.50x25mm (Incls. Washer & Lockwasher)
100 9 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
98 2 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm
97 1 2479Z2204 INSULATOR INSULATOR
96 1 2416P15858 STAY
95 1 2432Z473 CLAMP CLAMP SEAL
94 1 2416P15740 BRACKET, Remarks: (WITH ENGINE)
93 1 2418T16613 TUBE
92 1 2444Z3779 FLEXIBLE HOSE HOSE
91 1 2418P23309 TUBE TUBE
90 8 2432Z290 CLIP Wire Ties -- 185mm Long, Applicable: YW04769-
90 10 2432Z290 CLIP Wire Ties -- 185mm Long, Applicable: YW04601-04768
89 1 2489U268F1 SENDER UNIT SENDING UNIT, THERMO
88 2 2479R1770 INSULATOR INSULATOR
87 1 2418P23195 EXHAUST SYSTEM PIPE PIPE, TAIL
85 1 ZW16X12000 WASHER ID 12 x OD 24 x Th 2.3mm
84 1 2432T2279 CLAMP CLAMP
83 1 2416P18723 STAY
82 2 2420T6738 U-BOLT U-BOLT
79 1 2427U1322 MUFFLER MUFFLER
78-4 1 2446U242S4 VALVE VALVE
78-3 1 2446U226S4 WING NUT NUT, WING
78-2 1 2446U264S2 ELEMENT ELEMENT ASSY
78-1 1 2446U270S1 BODY ASSY
78 1 2446U270F1 CLEANER ASSY, AIR
76 1 24100N6211F3 PUMP ASSY, CONNECT, Remarks: P,301-01
74 4 2418T18173 COLLAR CLAMP COLLAR
73 2 2416Z574 RUBBER SLEEVE RUBBER, CUSHION
72 2 2416Z573 RUBBER SLEEVE RUBBER, CUSHION
71 1 2450R163F1 INDICATOR INDICATOR ASSY
69 1 2444R1080 FLEXIBLE HOSE HOSE
67 1 2420U195 PIPE
63 6 ZW22X08000 LOCK WASHER ID 08 x OD 15.4 x Th 2.0mm
62 2 ZS18C08025 SCREW M08x1.25x25mm
61 4 ZS13C08020 SCREW M08x1.25x20mm
60 4 ZS13C16035 SCREW M16x2.0x35mm, Applicable: YW04769-
60 5 ZS13C16035 SCREW M16x2.0x35mm, Applicable: YW04601-04768
59 6 ZS13C10020 SCREW M10x1.50x20mm
58 1 ZS18C16040 SCREW M16x2.0x40mm, Applicable: YW04769-
58 1 ZS13C16040 SCREW M16x2.0x40mm, Applicable: YW04601-04768
57 1 ZS18C12040 SCREW M12x1.75x40mm
56 1 ZS18C16035 SCREW M16x2.0x35mm, Applicable: YW04769-
54 2 ZC15X09000 CLAMP CLIP
53 1 2420T4376D3 SCREW CAPSCREW
52 1 ZS13C18120 M18x2.0x120mm
51 2 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm, Applicable: YW04769-
51 2 ZW13H12000 WASHER WASHER, Applicable: YW04601-04768
50 2 ZS18C12025 SCREW M12x1.75x25mm, Applicable: YW04769 -
50 2 ZS13C12025 SCREW M12x1.75x25mm, Applicable: YW04601-04768
49 2 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm, Applicable: YW04769-
49 2 ZW22X16000 WASHER, LOCK ID 16 x OD 28.0 x Th 4.0mm, Applicable: YW04601-04768
48 1 ZN18C12010 NUT M12x1.75mm
47 1 2418Z773D1 TUBE, Applicable: YW04601-04768
46 1 2418Z1333D3 TUBE 19.5mm ID x 23.8mm OD x 750mm Length, Protective Plastic, Applicable: YW04769-
46 1 2418Z773D4 TUBE, Applicable: YW04601-04768
45 1 2444Z3445 FLEXIBLE HOSE HOSE
44 2 ZS13C08030 SCREW M08x1.25x30mm
43 1 2418Z560D1 HOSE HOSE
42 1 2418R590D1 FLEXIBLE HOSE HOSE
41 1 2420Z912D4 HOSE HOSE
40-6 1 2427U203S6 SWITCH Radiator Over Flow Level
40-4 1 2427U203S4 TANK TANK
40-3 1 2427U203S3 LABEL PLATE, CAUTION
40-2 1 2427U203S2 HYD CONNECTOR CONDUCTOR
40 1 2427U203F3 TANK RADIATOR, SUB-TANK
39-2 1 2416R259D1 CUSHION RUBBER, CUSHION
39 1 2416T23254 BRACKET BRACKET
38 1 2446U273F1 FILTER, Remarks: (WITH ENGINE)
36 1 2479Z1435 SENSOR SENSOR, SPEED, Remarks: (WITH ENGINE)
35 6 ZC15X01500 CLIP CLIP, Applicable: YW04769-
35 6 ZC15X01300 CLIP CLIP, Applicable: YW04601-04768
34 4 ZC15X01000 CLIP CLIP
33 1 2420Z795D4 HOSE HOSE
32 1 2444Z1293D8 LUBE NIPPLE 1/4"PTx43mm Long
31 2 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, Applicable: YW04769-
31 2 ZW22X12000 LOCK WASHER ID 12 x OD 21.5 x Th 3.0mm, Applicable: YW04601-04768
30 1 2444R2492D180 FLEXIBLE HOSE HOSE, Applicable: YW04769-
30 1 4018Z1D10 FLEXIBLE HOSE HOSE, Applicable: YW04601-04768
29 1 2418Z1333D6 TUBE 19.5mm ID x 23.8mm OD x 1400mm Length, ASN YW04769
28 1 2444R2492D150 HOSE 1500mm Long (59-3/64 in), Applicable: YW04769-
28 1 2444R2492D150 HOSE 1500mm Long (59-3/64 in), Applicable: YW04601-04768
27 1 2444R2492D220 HOSE HOSE, Applicable: YW04769-
27 1 4018Z1D7 HOSE HOSE, Applicable: YW04601-04768
26 2 ZC15X07000 CLIP CLIP
25 2 ZC15X08000 CLIP CLIP
24 10 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm
22 2 ZN13C10008 NUT M10x1.50mm
21 4 ZN13C18015 NUT M18x2.5mm
20 2 ZS13C18080 SCREW M18x2.0x80mm
19 4 ZS13C10025 SCREW M10x1.50x25mm
17 4 ZC15X06000 CLIP CLIP
13 1 2444R2458 FLEXIBLE HOSE HOSE
12 1 2444R2457 FLEXIBLE HOSE HOSE
10 4 2416Z498 RUBBER SLEEVE RUBBER, CUSHION
9 2 2418T17962 PLATE PLATE
8 1 2432T5093 BRACKET, Remarks: (WITH ENGINE)
7-2 1 2416Z487D9 RUBBER, CUSHION
7-1 1 2432P2417 CLAMP
7 2 2432T5093F1 CLAMP ASSY
1 1 2452U413F1 RADIATOR RADIATOR ASSY, Remarks: P. 321-01
AR 24100J14478F4 POWER-PLANT ASSY
