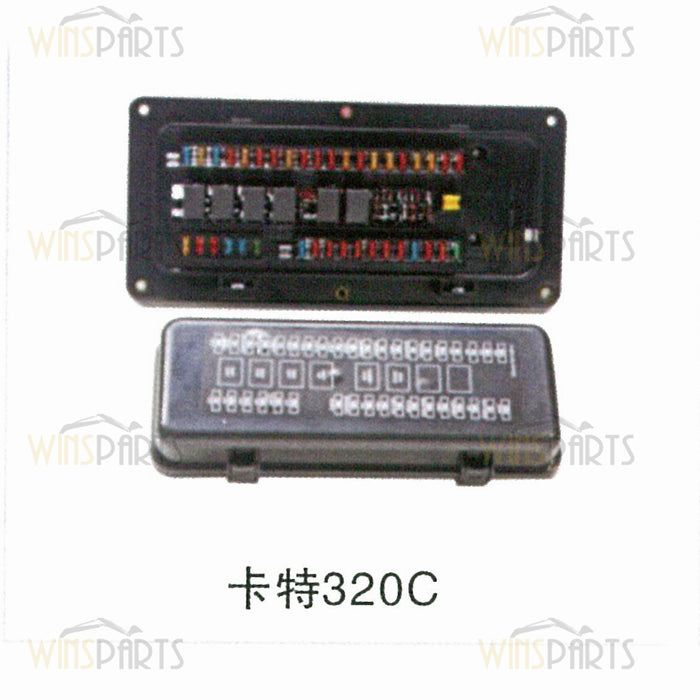

163-6740 163-6741 213-0671 BASE Relay Fuse Box with HARNESS AS Caterpillar

163-6740 163-6741 213-0671 1636740 1636741 2130671 BASE Relay Fuse Box with HARNESS AS Caterpillar 318C 322C 320C 325C 330C e320C Excavator Parts

Product Description

• Part Number: 163-6740 163-6741 213-0671

• Description: BASE Relay Fuse Box with HARNESS AS Caterpillar

• Engine Brand: ISUZU/HINO/MISTUBISHI/YANMAR

• Excavator Brand: New Holland KOBELCO/HITACHI/CAT/KOMATSU

• Place of Origin:China/Japan

• Packing: Original packing or Neutral packing

163-6740 163-6741 213-0671 BASE Relay Fuse Box with HARNESS AS Caterpillar 318C 322C 320C 325C 330C e320C Excavator Parts

213-0671: PANEL GP-CIRCUIT BREAKER
PANEL GP-CIRCUIT BREAKER
213-0671 PANEL GP-CIRCUIT BREAKER
S/N MAB1-UP; PAB1-UP
PART OF 204-1586 BATTERY & WIRING GP
Type 1
2130671 PANEL GP-CIRCUIT BREAKER Parts scheme 2130671 PANEL GP-CIRCUIT BREAKER Parts scheme



Parts for your 320C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 163-6741 [1] BRACKET AS
2. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 7X-2619 M [20] BOLT (M6X1X10-MM)
5. 204-1640 [1] COVER AS
6. 170-6887 [1] COVER
7. 8C-7581 M [9] SCREW-MACHINE (M4X0.7X8-MM)
8. 096-6166 [9] WASHER-HARD (4.5X9X1-MM THK)
9. 8T-6411 M [9] SCREW-MACHINE (M6X1X12-MM)
10. 9X-8256 [32] WASHER (6.6X12X2-MM THK)
11. 171-2208 [1] CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)
1H-3244 [2] LOCKWASHER
6V-8187 [2] NUT (1/4-28-THD)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
12. 6V-5645 [2] SCREW-MACHINE (10-32X0.87-IN)
13. 8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
14. 3E-8320 [1] PLATE-INSTRUCTION (BATTERY)
15. 7N-0718 Y [1] SWITCH GP-DISCONNECT (BATTERY)
16. 8T-4970 M [2] BOLT (M6X1X14-MM)
17. 163-6703 [1] TIMER AS-OFF DELAY
186-3735 [4] PIN-CONNECTOR (16-GA TO 18-GA)
102-8804 [1] KIT-RECEPTACLE (4-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
18. 105-9981 [1] CLIP
19. 165-4026 [1] SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)
4F-2294 [2] NUT-JAM (5/16-24-THD)
6V-8186 [2] NUT-FULL (5/16-24-THD)
6V-8378 [2] NUT (10-32-THD)
20. 105-9983 [2] CLIP
21. 3S-2093 [3] STRAP-CABLE
22. 111-4719 [1] CLIP
23. 105-9986 [1] CLIP
24. 213-0842 [1] HARNESS AS
102-8803 [1] KIT-RECEPTACLE (3-PIN)
102-8805 [1] KIT-RECEPTACLE (6-PIN)
102-8801 [1] KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
155-2255 [2] KIT-CONNECTING PLUG (12-PIN)
155-2260 [1] KIT-CONNECTING PLUG (3-PIN)
155-2270 [2] KIT-CONNECTING PLUG (2-PIN)
155-2271 [2] KIT-CONNECTING PLUG (4-PIN)
(EACH PLUG KIT INCLUDES PLUG AS & WEDGE & INTERFACE SEAL)
25. 167-3593 [1] STRAP
26. 163-6780 [1] WIRE AS
27. 163-6753 [1] WIRE AS
28. 5C-2890 M [2] NUT (M6X1-THD)
29. 116-0114 [1] SWITCH AS-MAGNETIC (24-VOLT)(HEATER RELAY)
186-3735 [2] PIN-CONNECTOR (16-GA TO 18-GA)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
30. 3E-8048 M [4] SCREW-MACHINE (M3X0.5X6-MM)
31. 096-5962 [4] WASHER-HARD (3.4X7X0.8-MM THK)
32. 136-4055 [1] STRIP
33. 163-6755 [1] WIRE AS
34. 163-6752 [1] WIRE AS
35. 163-6751 [1] WIRE AS
36. 163-6754 [1] WIRE AS
37. 163-6757 [1] WIRE AS
38. 111-4829 [1] WIRE AS
39. 095-0742 M [5] SCREW-MACHINE (M6X1X16-MM)
40. 121-1023 [1] BLOCK-TERMINAL
41. 161-3128 [1] RELAY (24-VOLT)(BOOM LIGHTS)
41A. 161-3128 [1] RELAY (24-VOLT)(CHASSIS LIGHT)
41B. 161-3128 [1] RELAY (24-VOLT)(CAB LIGHT)
41C. 161-3128 [1] RELAY (24-VOLT)(HORN)
41D. 161-3128 [1] RELAY (24-VOLT)(HYDRAULIC LOCKOUT)
41E. 161-3128 [1] RELAY (24-VOLT)(NEUTRAL START)
42. 113-8491 [6] FUSE (15-AMPERE)
43. 141-2759 [10] FUSE (5-AMPERE)
44. 113-8490 [20] FUSE (10-AMPERE)
45. 170-6888 [1] PULLER-FUSE
46. 149-5051 [2] CONNECTOR-RECEPTACLE
47. 124-3548 [2] FUSE (30-AMPERE)
48. 094-2080 [1] SWITCH-MAGNETIC (24-VOLT)(START RELAY)
49. 102-8016 [1] RESISTOR AS (BACKUP)
50. 197-4330 [1] CONTROLLER-AIR (HEATER)
51. 125-1302 Y [1] SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
52. 170-9478 [1] WIRE AS
M METRIC PART
Y SEPARATE ILLUSTRATION

197-4341: PANEL GP-CIRCUIT BREAKER
PANEL GP-CIRCUIT BREAKER
197-4341 PANEL GP-CIRCUIT BREAKER
S/N CFB1-UP; CFT1-UP
PART OF 170-9325 BATTERY & WIRING GP
1974341 PANEL GP-CIRCUIT BREAKER Parts scheme 1974341 PANEL GP-CIRCUIT BREAKER Parts scheme



Parts for your 315C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 193-3531 [1] BRACKET AS
2. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 170-6933 [1] COVER
5. 170-6887 [1] COVER
6. 8T-6411 M [8] SCREW-MACHINE (M6X1X12-MM)
7. 9X-8256 [35] WASHER (6.6X12X2-MM THK)
8. 171-2208 [1] CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)
1H-3244 [2] LOCKWASHER
6V-8187 [2] NUT (1/4-28-THD)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
9. 6V-5645 [2] SCREW-MACHINE (10-32X0.87-IN)
10. 7N-0718 Y [1] SWITCH GP-DISCONNECT (BATTERY)
11. 3E-8320 [1] PLATE-INSTRUCTION (BATTERY)
12. 8C-7581 M [9] SCREW-MACHINE (M4X0.7X8-MM)
13. 096-6166 [9] WASHER-HARD (4.5X9X1-MM THK)
14. 3E-8048 M [4] SCREW-MACHINE (M3X0.5X6-MM)
15. 096-5962 [4] WASHER-HARD (3.4X7X0.8-MM THK)
16. 136-4055 [1] STRIP
17. 7X-2619 M [17] BOLT (M6X1X10-MM)
18. 163-6703 [1] TIMER AS-OFF DELAY (ENGINE START)
186-3735 [4] PIN-CONNECTOR (16-GA TO 18-GA)
102-8804 [1] KIT-RECEPTACLE (4-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
19. 105-9980 [1] CLIP
20. 3S-2093 [5] STRAP-CABLE
21. 105-9982 [1] CLIP
22. 111-4719 [1] CLIP
23. 167-3593 [1] STRAP
24. 105-9986 [1] CLIP
25. 213-0537 [1] HARNESS AS-PANEL
102-8803 [2] KIT-RECEPTACLE (3-PIN)
102-8805 [1] KIT-RECEPTACLE (6-PIN)
102-8801 [3] KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
155-2270 [1] KIT-CONNECTING PLUG (2-PIN)
155-2260 [3] KIT-CONNECTING PLUG (3-PIN)
155-2271 [1] KIT-CONNECTING PLUG (4-PIN)
155-2255 [5] KIT-CONNECTING PLUG (12-PIN)
(EACH CONNECTING PLUG KIT INCLUDES PLUG AS & WEDGE)
183-1000 [1] PANEL AS-FUSE
9X-8256 [2] WASHER (6.6X12X2-MM THK)
095-0742 M [2] SCREW-MACHINE (M6X1X16-MM)
170-9394 [32] TERMINAL
26. 165-4026 [1] SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)
4F-2294 [2] NUT-JAM (5/16-24-THD)
6V-8186 [2] NUT-FULL (5/16-24-THD)
6V-8378 [2] NUT (10-32-THD)
27. 105-9983 [1] CLIP
28. 5C-2890 M [2] NUT (M6X1-THD)
29. 116-0114 [1] SWITCH AS-MAGNETIC (24-VOLT)(HEATER RELAY)
186-3735 [2] PIN-CONNECTOR (16-GA TO 18-GA)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
30. 193-3526 [1] WIRE AS
31. 193-3527 [1] WIRE AS
32. 193-3525 [1] WIRE AS
33. 170-6935 [1] WIRE AS
34. 193-3529 [1] CABLE AS
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
35. 193-3528 [1] CABLE AS
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
36. 163-6757 [1] WIRE AS
37. 111-4829 [1] WIRE AS
38. 193-3520 [1] BRACKET AS
39. 121-1023 [1] BLOCK-TERMINAL
40. 161-3128 [1] RELAY (24-VOLT)(BOOM FLOODLIGHT)
40A. 161-3128 [1] RELAY (24-VOLT)(CAB FLOODLIGHT)
40B. 161-3128 [1] RELAY (24-VOLT)(NEUTRAL START)
40C. 161-3128 [1] RELAY (24-VOLT)(CHASSIS FLOODLIGHT)
40D. 161-3128 [1] RELAY (24-VOLT)(HORN)
40E. 161-3128 [1] RELAY (24-VOLT)(HYDRAULIC LOCKOUT)
41. 113-8491 [9] FUSE (15-AMPERE)
42. 141-2759 [10] FUSE (5-AMPERE)
43. 113-8490 [19] FUSE (10-AMPERE)
44. 170-6888 [1] PULLER-FUSE
45. 149-5051 [2] CONNECTOR-RECEPTACLE
46. 094-2080 [1] SWITCH-MAGNETIC (24-VOLT)(START RELAY)
47. 102-8016 [1] RESISTOR AS (BACKUP)
48. 5C-9553 M [2] BOLT (M6X1X16-MM)
49. 138-5190 Y [1] CONTROL GP-ENGINE ELECTRONIC (ENGINE SHUTDOWN)
50. 193-3496 [1] CONTROLLER
51. 125-1302 Y [1] SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
52. 163-6758 [1] WIRE AS
53. 170-9409 [1] WIRE AS
54. 095-0742 M [4] SCREW-MACHINE (M6X1X16-MM)
M METRIC PART
Y SEPARATE ILLUSTRATION

260-9483: PANEL GP-CIRCUIT BREAKER
PANEL GP-CIRCUIT BREAKER
260-9483 PANEL GP-CIRCUIT BREAKER
S/N DKY3967-UP
PART OF 186-4706 BATTERY & WIRING GP
2609483 PANEL GP-CIRCUIT BREAKER Parts scheme 2609483 PANEL GP-CIRCUIT BREAKER Parts scheme 2609483 PANEL GP-CIRCUIT BREAKER Parts scheme



Parts for your 330C L EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 260-9480 [1] HARNESS AS-FRONT
121-1022 [3] DIODE
183-1000 [1] PANEL AS-FUSE
102-8802 [1] KIT-RECEPTACLE (2-PIN)
102-8803 [1] KIT-RECEPTACLE (3-PIN)
102-8801 [1] KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
3S-2093 [28] STRAP-CABLE
155-2255 [2] KIT-CONNECTING PLUG (12-PIN)
155-2260 [1] KIT-CONNECTING PLUG (3-PIN)
155-2270 [2] KIT-CONNECTING PLUG (2-PIN)
155-2271 [1] KIT-CONNECTING PLUG (4-PIN)
155-2274 [1] KIT-CONNECTING PLUG (6-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
2. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 204-1640 [1] COVER AS
5. 238-2526 [1] COVER
6. 8C-7581 M [9] SCREW-MACHINE (M4X0.7X8-MM)
7. 096-6166 [9] WASHER-HARD (4.5X9X1-MM THK)
8. 8T-6411 M [14] SCREW-MACHINE (M6X1X12-MM)
9. 9X-8256 [24] WASHER (6.6X12X2-MM THK)
10. 7N-0719 Y [1] SWITCH GP-DISCONNECT (BATTERY)
11. 8T-4970 M [2] BOLT (M6X1X14-MM)
12. 163-6703 [1] TIMER AS-OFF DELAY
186-3735 [4] PIN-CONNECTOR (16-GA TO 18-GA)
102-8804 [1] KIT-RECEPTACLE (4-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
13. 105-9981 [1] CLIP
14. 7X-2619 M [14] BOLT (M6X1X10-MM)
15. 213-0772 [1] SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)
16. 105-9983 [1] CLIP
17. 3S-2093 [1] STRAP-CABLE
18. 105-9984 [1] CLIP
19. 105-9986 [1] CLIP
20. 105-9985 [1] CLIP
21. 167-3593 [1] STRAP
22. 167-3618 [1] WIRE AS
23. 167-3619 [1] WIRE AS
24. 260-9484 [1] BRACKET AS
25. 096-5962 [4] WASHER-HARD (3.4X7X0.8-MM THK)
26. 3E-8048 M [4] SCREW-MACHINE (M3X0.5X6-MM)
27. 136-4055 [1] STRIP
28. 171-2210 [1] CIRCUIT BREAKER AS (80-AMPERE)(MAIN)
6V-8187 [2] NUT (1/4-28-THD)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
253-2111 [2] LOCKWASHER
29. 224-2859 [1] WIRE AS
30. 111-4829 [1] WIRE AS
31. 121-1023 [1] BLOCK-TERMINAL
32. 161-3128 [1] RELAY (24-VOLT)(NEUTRAL START)
32A. 161-3128 [1] RELAY (24-VOLT)(HYDRAULIC LOCKOUT)
32B. 161-3128 [1] RELAY (24-VOLT)(CAB FLOODLIGHT)
32C. 161-3128 [1] RELAY (24-VOLT)(BOOM LIGHTS)
32D. 161-3128 [1] RELAY (24-VOLT)(CHASSIS LIGHT)
32E. 161-3128 [1] RELAY (24-VOLT)(HORN)
32F. 161-3128 [1] RELAY (24-VOLT)(FUEL TRANSFER PUMP)
33. 113-8491 [7] FUSE (15-AMPERE)
34. 141-2759 [6] FUSE (5-AMPERE)
35. 113-8490 [25] FUSE (10-AMPERE)
36. 170-6888 [1] PULLER-FUSE
37. 197-4302 [1] CABLE AS
6V-2369 D CABLE (4-GA, BLACK)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
38. 216-4970 [1] CIRCUIT BREAKER AS (120-AMPERE)(HEATER)
6V-8187 [2] NUT (1/4-28-THD)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
253-2111 [2] LOCKWASHER
39. 8T-0328 [4] WASHER-HARD (5.5X10X1-MM THK)
40. 197-4353 [1] CABLE AS
6V-2369 D CABLE (4-GA, BLACK)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
41. 102-8016 [1] RESISTOR AS (BACKUP)(BACKUP)
42. 197-4304 [1] CABLE AS
6V-2369 D CABLE (4-GA, BLACK)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
43. 125-1302 Y [1] SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
44. 149-5051 [1] CONNECTOR-RECEPTACLE
45. 6V-5645 [4] SCREW-MACHINE (10-32X0.87-IN)
46. 3E-8320 [1] PLATE-INSTRUCTION (BATTERY)
47. 213-0837 [1] CABLE AS
6V-2369 D CABLE (4-GA, BLACK)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
48. 213-0561 [1] CABLE AS
6V-2369 D CABLE (4-GA, BLACK)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
D ORDER BY THE METER
M METRIC PART
Y SEPARATE ILLUSTRATION

193-3530: PANEL GP-CIRCUIT BREAKER
PANEL GP-CIRCUIT BREAKER
193-3530 PANEL GP-CIRCUIT BREAKER
S/N CBA2793-UP; FDS415-UP
PART OF 186-4600 BATTERY & WIRING GP
1933530 PANEL GP-CIRCUIT BREAKER Parts scheme 1933530 PANEL GP-CIRCUIT BREAKER Parts scheme 1933530 PANEL GP-CIRCUIT BREAKER Parts scheme



Parts for your 312C L EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 213-0870 [1] BRACKET AS
2. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 170-6933 [1] COVER
5. 238-2526 [1] COVER
6. 8T-6411 M [8] SCREW-MACHINE (M6X1X12-MM)
7. 9X-8256 C [29] WASHER (6.6X12X2-MM THK)
9. 6V-5645 [2] SCREW-MACHINE (10-32X0.87-IN)
10. 7N-0718 Y [1] SWITCH GP-DISCONNECT (BATTERY)
11. 3E-8320 [1] PLATE-INSTRUCTION (BATTERY)
12. 8C-7581 M [9] SCREW-MACHINE (M4X0.7X8-MM)
13. 096-6166 [9] WASHER-HARD (4.5X9X1-MM THK)
14. 3E-8048 M [4] SCREW-MACHINE (M3X0.5X6-MM)
15. 096-5962 [4] WASHER-HARD (3.4X7X0.8-MM THK)
16. 136-4055 [1] STRIP
17. 213-0873 [1] WIRE AS
18. 163-6703 [1] TIMER AS-OFF DELAY
186-3735 [1] PIN-CONNECTOR (16-GA TO 18-GA)
102-8804 [1] KIT-RECEPTACLE (4-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
19. 105-9980 [1] CLIP
20. 7X-2619 CM [11] BOLT (M6X1X10-MM)
21. 213-0772 [1] SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)
22. 3S-2093 C [7] STRAP-CABLE
23. 105-9982 [1] CLIP
24. 111-4719 [1] CLIP
25. 167-3593 [1] STRAP
26. 105-9986 [1] CLIP
27. 267-7632 C [1] HARNESS AS-BOX (PANEL)
155-2255 [2] KIT-CONNECTING PLUG (12-PIN)
155-2260 [1] KIT-CONNECTING PLUG (3-PIN)
155-2270 [2] KIT-CONNECTING PLUG (2-PIN)
155-2271 [2] KIT-CONNECTING PLUG (4-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
102-8803 [1] KIT-RECEPTACLE (3-PIN)
102-8805 [1] KIT-RECEPTACLE (6-PIN)
102-8801 [1] KIT-RECEPTACLE (12-PIN)
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
7Y-3967 [4] TERMINAL AS
(EACH INCLUDES)
7Y-3963 [1] TERMINAL-BULLET (FEMALE)
7Y-3965 [1] TUBE (RECEPTACLE TERMINAL)
7Y-3951 [21] TERMINAL-BLADE (14-GA)
7Y-3952 [6] PLUG-CONNECTOR (2-PIN)
7Y-3953 [1] CONNECTOR-RECEPTACLE
7Y-3958 [1] CONNECTOR-PLUG (6-PIN)
7Y-3993 [3] TERMINAL-BLADE (12-GA)
8C-6354 [1] CAP-RECEPTACLE (ET CONNECTOR)
9W-1951 [1] RECEPTACLE-CONNECTOR (9-PIN)
121-1022 [5] DIODE
149-5069 [6] TERMINAL-BLADE (14-GA TO 20-GA)
149-5070 [12] TERMINAL-BLADE (16-GA TO 20-GA)
149-5071 [6] TERMINAL-BLADE (12-GA TO 14-GA)
153-2602 [2] RECEPTACLE-CONNECTOR (1-PIN)
153-2631 [2] TERMINAL (FEMALE)
170-6890 [5] TERMINAL-BLADE (14-GA)
170-6891 [23] TERMINAL-BLADE (16-GA TO 18-GA)
183-1000 [1] PANEL AS-FUSE
9X-8256 [2] WASHER (6.6X12X2-MM THK)
095-0742 M [2] SCREW-MACHINE (M6X1X16-MM)
170-9394 [32] TERMINAL
28. 105-9983 [1] CLIP
29. 5C-2890 M [2] NUT (M6X1-THD)
30. 116-0114 [1] SWITCH AS-MAGNETIC (24-VOLT)(HEATER RELAY)
186-3735 [2] PIN-CONNECTOR (16-GA TO 18-GA)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
31. 213-0872 [1] WIRE AS
32. 170-6935 [1] WIRE AS
33. 213-0871 [1] WIRE AS
34. 193-3529 [1] CABLE AS
9G-4343 TERMINAL-RING (4-GA, 1/4-IN SCREW)
125-7876 E TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
35. 193-3528 [1] CABLE AS
9G-4343 [1] TERMINAL-RING (4-GA, 1/4-IN SCREW)
125-7876 D TUBE-HEAT SHRINK (17.78-MM DIA)(.04-M)
36. 163-6757 [1] WIRE AS
37. 111-4829 [1] WIRE AS
38. 193-3520 [1] BRACKET AS
39. 121-1023 [1] BLOCK-TERMINAL
40. 161-3128 [1] RELAY (24-VOLT)(CHASSIS LIGHT)
40A. 161-3128 [1] RELAY (24-VOLT)(HORN)
40B. 161-3128 [1] RELAY (24-VOLT)(HYDRAULIC LOCKOUT)
40C. 161-3128 [1] RELAY (24-VOLT)(NEUTRAL START)
40D. 161-3128 [1] RELAY (24-VOLT)(CAB LIGHT)
40E. 161-3128 [1] RELAY (24-VOLT)(BOOM LIGHTS)
41. 113-8491 [7] FUSE (15-AMPERE)
42. 141-2759 [10] FUSE (5-AMPERE)
43. 113-8490 [21] FUSE (10-AMPERE)
44. 170-6888 [1] PULLER-FUSE
45. 149-5051 [2] CONNECTOR-RECEPTACLE
46. 094-2080 [1] SWITCH-MAGNETIC (24-VOLT)(START RELAY)
47. 102-8016 [1] RESISTOR AS (BACKUP)
48. 197-4330 [1] CONTROLLER-AIR (HEATER)
51. 170-9409 [1] WIRE AS
52. 8T-4171 M [2] BOLT (M6X1X12-MM)
53. 171-2208 [1] CIRCUIT BREAKER AS (60-AMPERE)(ALTERNATOR)
253-2111 [2] LOCKWASHER
6V-8187 [2] NUT (1/4-28-THD)
8T-4205 [2] WASHER-HARD (7.2X14.5X2-MM THK)
54. 095-0742 M [4] SCREW-MACHINE (M6X1X16-MM)
55. 8T-4127 M [2] SCREW-MACHINE (M5X0.8X20-MM)
56. 8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
57. 8C-8451 CM [2] BOLT (M6X1X40-MM)
58. 259-5274 CY [1] SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
59. 085-7329 C [2] SPACER (9X19X30-MM THK)
60. 267-7596 C [1] HARNESS AS-WIRING (HEATER CONTROL)
7Y-3950 [2] TERMINAL-BLADE (14-GA TO 20-GA)
7Y-3951 [4] TERMINAL-BLADE (14-GA)
7Y-3952 [2] PLUG-CONNECTOR (2-PIN)
7Y-3953 [1] CONNECTOR-RECEPTACLE
121-1022 [2] DIODE
C CHANGE FROM PREVIOUS TYPE
D ORDER BY THE METER
E ORDER BY THE CENTIMETER
M METRIC PART
Y SEPARATE ILLUSTRATION
