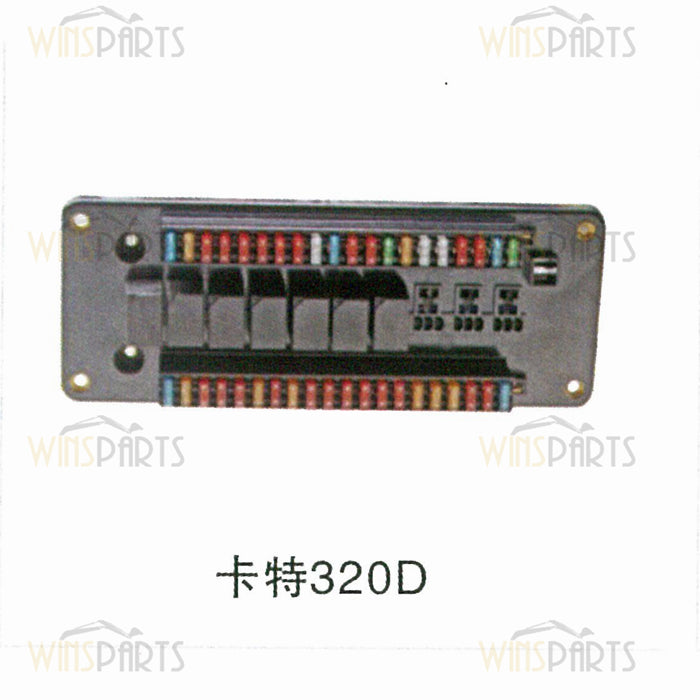

238-2319 2382319 CAT BASE Relay Fuse Box BASE Assy Caterpillar

238-2319 2382319 CAT BASE Relay Fuse Box BASE Assy Caterpillar 318D2 319D 320D 312D 345D 330D Excavator Spare Parts

Product Description

• Part Number: 238-2319 2382319

• Description: CAT BASE Relay Fuse Box BASE Assy Caterpillar

• Engine Brand: ISUZU/HINO/MISTUBISHI/YANMAR

• Excavator Brand: New Holland KOBELCO/HITACHI/CAT/KOMATSU

• Place of Origin:China/Japan

• Packing: Original packing or Neutral packing

238-2319 2382319 CAT BASE Relay Fuse Box BASE Assy Caterpillar 318D2 319D 320D 312D 345D 330D Excavator Spare Parts

481-8438: WIRING GP-CAB
WIRING GP-CAB
481-8438 WIRING GP-CAB
S/N XDR1-UP
PART OF 482-4916 OPERATOR AR
4818438 WIRING GP-CAB Parts scheme 4818438 WIRING GP-CAB Parts scheme 4818438 WIRING GP-CAB Parts scheme



Parts for your 330D2 EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 3S-2093 [6] STRAP-CABLE
2. 7K-1181 [10] STRAP-CABLE
3. 7Y-5505 [2] SPEAKER AS
(EACH INCLUDES)
7Y-3951 [2] TERMINAL-BLADE (14-GA)
7Y-3954 [1] CONNECTOR-PLUG (3-PIN)
4. 132-1829 Y [1] ALARM GP (24-VOLT)
5. 167-3593 [1] STRAP
6. 238-2318 [1] LIGHTER AS-CIGAR (24-VOLT)
-OR-
9W-0335 [1] LIGHTER AS-CIGAR (24-VOLT)
7. 238-2391 [1] CABLE AS (PURPLE)
6V-2369 D CABLE (4-GA, BLACK)(0.3-M)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
8. 251-0637 [1] INSULATION
9. 270-2679 [1] LOCKWASHER
10. 342-3601 [1] COVER AS
11. 366-4622 [1] KIT-SERVICE METER (32-VOLT DC)
(INCLUDES SERVICE METER & FILM)
12. 460-0965 [1] BRACKET AS
13. 461-6784 [1] SWITCH AS-MAGNETIC (MAIN RELAY)
14. 466-7113 [1] ANTENNA AS
15. 475-4187 [1] CABLE AS (RED)
6V-2366 H CABLE-ELECTRICAL (4-GA, RED)(3-DM)
9G-4343 [2] TERMINAL-RING (4-GA, 1/4-IN SCREW)
16. 481-8444 [1] HARNESS AS-CAB
102-8803 [3] KIT-RECEPTACLE (3-PIN)
(EACH INCLUDES RECEPTACLE AS & WEDGE)
8T-8730 [7] SOCKET-CONNECTOR (16-GA TO 18-GA)
3S-2093 [95] STRAP-CABLE
7Y-3950 [4] TERMINAL-BLADE (14-GA TO 20-GA)
7Y-3951 [9] TERMINAL-BLADE (14-GA)
7Y-3952 [2] PLUG-CONNECTOR (2-PIN)
7Y-3955 [2] CONNECTOR-RECEPTACLE
7Y-3958 [1] CONNECTOR-PLUG (6-PIN)
7Y-3966 [2] TERMINAL AS
(EACH INCLUDES)
7Y-3962 [2] TERMINAL-BULLET (MALE)
7Y-3964 [2] TUBE (CONNECTOR TERMINAL)
8T-8737 [21] PLUG-SEAL
7Y-3967 [7] TERMINAL AS
(EACH INCLUDES)
7Y-3963 [1] TERMINAL-BULLET (FEMALE)
7Y-3965 [1] TUBE (RECEPTACLE TERMINAL)
5P-6271 [1] CONNECTOR AS
102-7964 [2] PLUG-CONNECTOR (16-PIN)
102-7965 [77] TERMINAL (FEMALE)
9W-0844 [6] SOCKET-CONNECTOR (14-GA TO 16-GA)
111-4816 [1] PLUG-CONNECTOR (13-PIN)
116-0255 [1] TERMINAL-BLADE (10-GA TO 20-GA)
119-3662 E TUBE-HEAT SHRINK (10.85-MM DIA)(39-CM)
121-1168 [1] CONNECTOR-RECEPTACLE
121-1173 [20] TERMINAL (MALE)
125-4784 [1] PLUG-CONNECTOR (12-PIN)
125-4785 [36] TERMINAL (FEMALE)
125-4840 [1] WEDGE-PLUG LOCK (13-PIN)
125-4841 [2] WEDGE-PLUG LOCK (21-PIN)
125-7874 E TUBE-HEAT SHRINK (5.72-MM DIA)(50-CM)
125-7875 E TUBE-HEAT SHRINK (7.44-MM DIA)(45-CM)
9X-3402 [6] SOCKET-CONNECTOR (16-GA TO 18-GA)
-OR-
126-1768 [6] SOCKET-CONNECTOR (14-GA TO 16-GA)
2L-8066 [2] TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW)
2L-8067 [8] TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)
2L-8075 [3] TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)
2L-8076 [2] TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)
128-8950 [1] CONNECTOR-RECEPTACLE
5P-2321 [1] TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)
176-9299 [1] KIT-RECEPTACLE (3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
134-3296 [1] HOUSING-PLUG
134-3297 [1] SEAL
138-5184 [1] PLUG-CONNECTOR (20-PIN)
9X-3401 [20] PIN-CONNECTOR (16-GA TO 18-GA)
-OR-
126-1767 [20] PIN-CONNECTOR (14-GA TO 16-GA)
149-5069 [12] TERMINAL-BLADE (14-GA TO 20-GA)
149-5070 [18] TERMINAL-BLADE (16-GA TO 20-GA)
149-5071 [6] TERMINAL-BLADE (12-GA TO 14-GA)
153-2602 [3] RECEPTACLE-CONNECTOR (1-PIN)
153-2631 [3] TERMINAL (14-GA TO 20-GA)
155-2260 [1] KIT-CONNECTING PLUG (3-PIN)
155-2270 [2] KIT-CONNECTING PLUG (2-PIN)
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL)
163-6803 [7] PLUG-CONNECTOR (5-PIN)
167-3487 [7] WEDGE-PLUG LOCK (5-PIN)
167-3630 [1] CONNECTOR-PLUG
167-3631 [2] TERMINAL (FEMALE)
170-6890 [6] TERMINAL-BLADE (14-GA)
170-6891 [26] TERMINAL-BLADE (16-GA TO 18-GA)
174-3016 [2] PLUG AS-CONNECTOR (3-PIN)
218-4935 [1] SUPPRESSOR-ARC
230-4009 [1] PLUG AS-CONNECTOR (12-PIN)
455-0709 [1] SEAL-CONNECTOR
230-4011 [2] PLUG AS-CONNECTOR (2-PIN)
(EACH INCLUDES)
455-0704 [1] SEAL-CONNECTOR
230-5010 [1] PLUG AS-CONNECTOR (6-PIN)
455-0707 [1] SEAL-CONNECTOR
238-2319 [1] BASE AS (FUSE, RELAY PANEL)
9X-8256 [2] WASHER (6.6X12X2-MM THK)
095-0742 M [2] SCREW-MACHINE (M6X1X16-MM)
238-2363 [6] TERMINAL (FEMALE)
238-2366 [10] TERMINAL (MALE)
243-4505 [1] RECEPTACLE AS-CONNECTOR (2-PIN)
243-4508 [1] RECEPTACLE AS-CONNECTOR (6-PIN)
342-2972 [1] CAP-CONNECTOR (2-PIN)
349-5084 [3] TERMINAL-BLADE
349-5085 [3] RECEPTACLE AS-CONNECTOR
451-8019 [1] RECEPTACLE AS-CONNECTOR (14-PIN)
16A. 113-8490 [20] FUSE (10-AMPERE)
16B. 113-8491 [5] FUSE (15-AMPERE)
16C. 113-8492 [2] FUSE (20-AMPERE)
16D. 113-8493 [2] FUSE (25-AMPERE)
16E. 124-3548 [2] FUSE (30-AMPERE)
16F. 141-2759 [9] FUSE (5-AMPERE)
16G. 161-3128 [1] RELAY (24-VOLT)(BOOM LIGHT)
16H. 161-3128 [1] RELAY (24-VOLT)(CAB LIGHT)
16J. 161-3128 [1] RELAY (24-VOLT)(HORN)
16K. 161-3128 [1] RELAY (24-VOLT)(BEACON)
16L. 161-3128 [1] RELAY (24-VOLT)(LIFTING)
16N. 161-3128 [1] RELAY (24-VOLT)(PRIMING PUMP)
16P. 161-3128 [1] RELAY (24-VOLT)(ETHER START)
16Q. 161-3128 [1] RELAY (24-VOLT)(NEUTRAL START)
16R. 161-3128 [1] RELAY (24-VOLT)(CHASSIS LIGHT)
16S. 170-6888 [1] PULLER-FUSE
17. 510-9643 [1] PANEL AS-CONTROL (12/24-VOLT)
483-1262 [1] KNOB
18. 096-5962 [1] WASHER-HARD (3.4X7X0.8-MM THK)
19. 096-6166 [6] WASHER-HARD (4.5X9X1-MM THK)
20. 156-6175 [9] CLIP (LADDER)
21. 163-6795 [14] STRAP-CABLE
22. 203-9007 [1] NUT (1-1/2-18-THD)
23. 4P-7581 [1] CLIP (LADDER)
24. 5C-2874 M [2] NUT (M5X0.8-THD)
25. 5C-2890 M [3] NUT (M6X1-THD)
26. 5P-4115 [1] WASHER-HARD (7.2X19X2-MM THK)
27. 6V-5210 M [4] SCREW-MACHINE (M4X0.7X10-MM)
28. 6V-9491 M [2] SCREW-MACHINE (M4X0.7X20-MM)
29. 6V-9669 M [1] SCREW-MACHINE (M3X0.5X8-MM)
30. 6V-9674 M [2] SCREW-MACHINE (M5X0.8X14-MM)
31. 7I-2673 [2] STRAP-CABLE
32. 8T-0328 [4] WASHER-HARD (5.5X10X1-MM THK)
33. 8T-0337 M [6] SCREW-MACHINE (M4X0.7X12-MM)
35. 9X-2042 M [9] SCREW-TRUSS HEAD (M6X1X12-MM)
36. 9X-2044 M [7] SCREW-TRUSS HEAD (M6X1X16-MM)
37. 9X-8256 [3] WASHER (6.6X12X2-MM THK)
38. 101-2846 E GUARD (90-CM EACH)
D ORDER BY THE METER
E ORDER BY THE CENTIMETER
H ORDER BY THE DECIMETER
M METRIC PART
Y SEPARATE ILLUSTRATION
