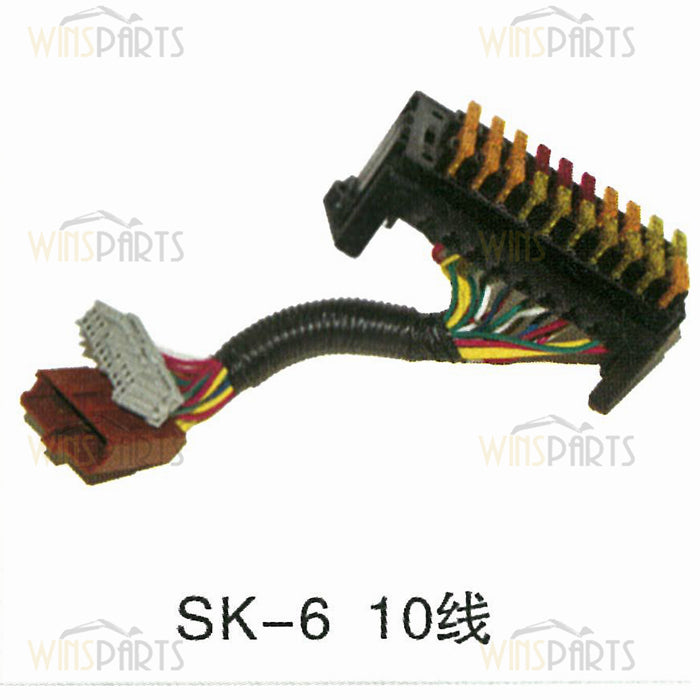

YN14E00040F2 YN14E01082P1 YN14E00046F1 Relay Fuse Box FUSE ASSY Relays with Harness Plug Kobelco SK200LC-6E SK200-6ES Excavator Electrica Spare Parts
A4 1 VAME077148 RELAY STARTER SAFETY -- MITSUBISHI PARTS NO.
B9-4 1 YY24S00001P1 RELAY RELAY,FLASHER As for the engine parts,refer to following "Engine Parts"
B9-3 3 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
B9-2 1 YN22E00016F1 CONTROL
B9-1 1 YN24E01004P3 PLATE
B9 1 YN24E00003F3 RELAY ASSY(F4 ONLY)
B8-4 1 YY24S00001P1 RELAY
B8-3 1 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
B8-1 1 YN24E01004P3 PLATE
B8 1 YN24E00003F2 RELAY RELAY ASSY(F3 ONLY)
B7 1 ZM66C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
B6 1 YN25S00001P1 TIMER
B5 1 YN22E01028P1 SUPPORT
B4 1 YN22E01032P1 PLATE
B3-3 2 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
B3-2 1 YN22E00016F1 CONTROL ASSY
B3-1 1 YN24E01004P3 PLATE
B3 1 YN24E00003F1 RELAY RELAY ASSY(F2 ONLY)
B2 4 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher), (F2.F3 F4 Only)
B1 9 ZM22C10025 BOLT M10x1.50x25mm (Incls. Washer & Lockwasher)
YN22E00046F4 CONTROLLER INSTAL (WITH POWER WINDOW, SLEWING FLASHER)
YN22E00046F3 CONTROLLER INSTAL (WITH SLEWING FLASHER
YN22E00046F2 CONTROLLER INSTAL (WITH POWER WINDOW)
YN22E00046F1 CONTROLLER INSTAL (STD)
A21 2 ZM61C06035 BOLT M06x1.0x35mm (Incls. Washer & Lockwasher)
A20 1 YN22E01012P1 RUBBER
A19 1 2420Z699 GROMMET
A18 2 ZM61C06030 BOLT M06x1.0x30mm (Incls. Washer & Lockwasher)
A17 1 YT24E00001F1 RELAY
A16 3 ZM61C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
A15 6 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
A14 1 ZM41C04016 BOLT M04x0.7x16mm (Incls. Washer & Lockwasher)
A13 1 YN22M01014P1 LABEL Decal, Swing Parking Brake Release Lock and Normal
A12 1 YN22M01013P1 LABEL
A11 1 YX50E00002F1 SWITCH ASSY (SWING PARKING RELEASE)
A10 1 YN50S01003P1 SWITCH (KPSS RELEASE)
A9-8 1 2432R233D1 CLIP 37x12x40mm
A9-7 2 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
A9-6 2 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
A9-5 1 PY01P01043D3 CLIP Wire Ties -- 188mm Long
A9-4 14 YN03E01001D5 CLIP 195mm Long (7-43/64 in) -- Black
A9-3 6 ZM66C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
A9-2 2 ZS18C06016 SCREW M06x1.0x16mm
A9-1 1 YN14E01013P1 HARNESS
A9 1 YN14E00013F1 HARNESS ASSY,CAB
A8 2 YR24S00002P1 RELAY
A7-8 1 YN73E01007P1 LABEL
A7-7 1 2479U655S3 FUSE FUSE(15A)
A7-6 1 YN73E00005S001 HARNESS HARNESS
A7-5 8 2479R655S9 FUSE 20 Amp
A7-4 4 2479R655S8 FUSE 10 Amp
A7-3 6 2479R655S10 FUSE 5 Amp
A7-2 1 YN73E00001S002 COVER COVER
A7 1 YN73E00005F1 FUSE ASSY
A6 1 LC22E01001D1 RESISTOR 16 Ohm
A5 1 YN22E00037F1 CONTROL ASSY (MECHA-TRO)
A3 1 YN50E00004F1 SWITCH ASSY
A2 1 YN22E01027P1 PLATE
A1 1 YN22E01033P2 BOX
YN22E00047F1 CONTROLLER ASSY
CONTROLLER GROUP
A7-1 1 YN73E00001S001 BASE BASE
A3 1 VAME077148 RELAY RELAY, SAFETY (R-4)
MITSUBISHI COMPONENT(S)
B9-5 2 ZM61C05016 BOLT M05x0.8x16mm (Incls. Washer & Lockwasher)
B9-4 1 YY24S00001P1 RELAY RELAY, FLASHER (R-19)
B9-3 1 YN77S00017P1 CONVERTER CONVERTER, DC-DC (E-22), Remarks: (24v-12v)
B9-2 1 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
B9-1 1 YN24E01007P1 PLATE PLATE
B9 1 YN24E00010F1 RELAY RELAY ASSY
B8 4 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
B7 6 ZM22C10030 BOLT M10x1.50x30mm (Incls. Washer & Lockwasher)
B6 5 ZM32C10025 BOLT M10x1.50x25mm (Incls. Washer & Lockwasher)
B5 1 ZM66C06025 BOLT M06x1.0x25mm (Incls. Washer & Lockwasher)
B4 1 YN25S00001P1 TIMER TIMER (R-20)
B3 1 YN22E01149P2 BRACKET BRACKET
B2 1 YN22E01145P1 SUPPORT SUPPORT
B1 1 YN22E01121P1 SUPPORT SUPPORT
YN22E00145F1 CONTROL UNIT CONTROLLER INSTAL
A14-7BE 9 2479R655S9 FUSE 20 Amp
A14-7BD 11 2479R655S8 FUSE 10 Amp
A14-7BC 1 YN73E01020P1 LABEL
A14-7BB 1 YN73E00001S002 COVER COVER
A14-7BA 1 YN73E00001S001 BASE BASE
A14-7 1 YN02D01001P1 DIODE Black - Not shown,
A14-7 1 YN02D01001P1 DIODE Black - Not shown,
A14-7B 1 YN73E00015F1 FUSE BOX BOX ASSY, FUSE (E-4)
A14-7 1 YN14E01073P1 HARNESS HARNESS
A14-6 2 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
A14-5 2 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
A14-4 11 YN03E01001D5 CLIP 195mm Long (7-43/64 in) -- Black
A14-3 8 ZM61C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
A14-2 2 ZS18C06016 SCREW M06x1.0x16mm
A13 1 2420Z699 GROMMET GROMMET
A12 8 ZM61C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
A11 1 YN22M01014P1 LABEL Decal, Swing Parking Brake Release Lock and Normal
A10 4 ZM61C06030 BOLT M06x1.0x30mm (Incls. Washer & Lockwasher)
A9 2 ZM66C05016 BOLT M05x0.8x16mm (Incls. Washer & Lockwasher)
A8 1 YN22E01139P1 PLATE PLATE
A7 1 YX50E00002F1 SWITCH SWITCH (Swing Parking Release) (SW-4)
A6 3 EN24S00008P1 RELAY RELAY (Travel Alarm:R-8; Horn:R-5 Work Light:R-6)
A5 1 YT24E00001F1 RELAY RELAY ASSY (WIPER) (R-7)
A4 1 YN22E00146F1 CONTROL CONTROLLER (C-1), Remarks: (MECHATRONIC) - Programmed,
A2 1 YN22E01141P1 PLATE PLATE
A1 1 YN22E01147P2 BOX BOX
YN22E00162F1 CONTROL CONTROLLER GROUP
CONTROLLER ASSY
A14 1 YN14E00040F2 HARNESS HARNESS ASSY, CAB
B11-4 1 YY24S00001P1 RELAY FLASHER
B11-3 3 ZM61C06016 BOLT M06 x 1.0 x 16mm (Incls. Washer & Lockwasher)
B11-2 1 YN22E00016F1 CONTROL ASSY
B11-1 1 YN24E01004P5 PLATE
B11 1 YN24E00003F3 RELAY ASSY (F4 ONLY)
B10-4 1 YY24S00001P1 RELAY FLASHER
B10-3 1 ZM61C06016 BOLT M06 x 1.0 x 16mm (Incls. Washer & Lockwasher)
B10-1 1 YN24E01004P5 PLATE
B10 1 YN24E00003F2 RELAY ASSY (F3 ONLY)
B9-3 2 ZM61C06016 BOLT M06 x 1.0 x 16mm (Incls. Washer & Lockwasher)
B9-2 1 YN22E00016F1 CONTROL ASSY
B9-1 1 YN24E01004P5 PLATE
B9 1 YN24E00003F1 RELAY ASSY (F2 ONLY)
B8 4 ZM66C06016 BOLT M06 x 1.0 x 16mm (Incls. Washer & Lockwasher) (F2 - F4 Only)
B7 6 ZM22C10030 BOLT M10 x 1.50 x 30mm (Incls. Washer & Lockwasher)
B6 5 ZM32C10025 BOLT M10 x 1.50 x 25mm (Incls. Washer & Lockwasher)
B5 1 ZM66C06025 BOLT M06 x 1.0 x 25mm (Incls. Washer & Lockwasher)
B4 1 YN25S00001P1 TIMER
B3 1 YN22E01149P2 BRACKET
B2 1 YN22E01145P1 SUPPORT
B1 1 YN22E01121P1 SUPPORT
AR YN22E00140F4 CONTROLLER INSTAL (WITH POWER WINDOW, SLEWING FLASHER)
AR YN22E00140F3 INSTRUCTION CONTROLLER INSTAL (WITH SLEWING FLASHER)
AR YN22E00140F2 CONTROLLER INSTAL (WITH POWER WINDOW)
AR YN22E00140F1 CONTROLLER INSTAL (STD)
A3 1 ME077148 STARTER SAFETY RELAY
A45-2 1 YN04E01003P1 RUBBER
A45-1 1 YN04E01002P1 BRACKET
A45 1 YN04E01001P1 COVER BRACKET, ASN YN10-38978
A45 1 YN04E01001P1 COVER BRACKET, ASN YQ10-05612
1 YN22E00123F5 CONTROLLER ASSY (MECHA-TRO), ASN YN10-38978
1 YN22E00123F5 CONTROLLER ASSY (MECHA-TRO), ASN YQ10-05612
A30 1 YN22E00123F4 CONTROLLER ASSY (MECHA-TRO), BTW YN10-38001 & YN10-38977
A30 1 YN22E00123F4 CONTROLLER ASSY (MECHA-TRO), BTW YQ10-05501 & YQ10-05611
A25 2 LC24S00001P1 RELAY
A14-6 2 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
A14-5 2 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
A14-4 11 YN03E01001D5 CLIP 195mm Long (7-43/64 in) Black
A14-3 8 ZM61C06020 BOLT M06 x 1.0 x 20mm (Incls. Washer & Lockwasher)
A14-2 2 ZS18C06016 SCREW M06 x 1.0 x 16mm
A14-1Be 11 2479R655S9 FUSE 20 Amp
A14-1Bd 10 2479R655S8 FUSE 10 Amp
A14-1BC 1 LQ73E01001P1
A14-1Bb 1 YN73E00001S002 COVER
A14-1Ba 1 YN73E00001S001 BASE
A14-1B 1 LQ73E00001F1 FUSE ASSY
A14 1 YN14E00046F1 HARNESS HARNESS ASSY, CAB
A13 1 2420Z699 GROMMET
A12 7 ZM61C06016 BOLT M06 x 1.0 x 16mm (Incls. Washer & Lockwasher)
A11 1 YN22M01014P1 LABEL Swing Parking Brake Release Lock and Normal
A10 4 ZM61C06030 BOLT M06 x 1.0 x 30mm (Incls. Washer & Lockwasher)
A9 2 ZM66C05016 BOLT M05 x 0.8 x 16mm (Incls. Washer & Lockwasher)
A8 1 YN22E01139P1 PLATE
A7 1 YX50E00002F1 SWITCH ASSY (SWING PARKING RELEASE)
A6 2 EN24S00008P1 RELAY
A5 1 YT24E00001F1 RELAY ASSY (WIPER & WASHER)
A2 1 YN22E01141P1 PLATE
A1 1 YN22E01147P2 BOX
AR YN22E00212F8 CONTROLLER ASSY, ASN YN10-38978
AR YN22E00212F8 CONTROLLER ASSY, ASN YQ10-05612
AR YN22E00177F8 CONTROLLER ASSY, BTW YN10-38001 & YN10-38977
AR YN22E00177F8 CONTROLLER ASSY, BTW YQ10-05501 & YQ10-05611
A14-1 1 YN14E01082P1 HARNESS
The price is for reference only, please contact us by email and the actual quotation shall prevail.
