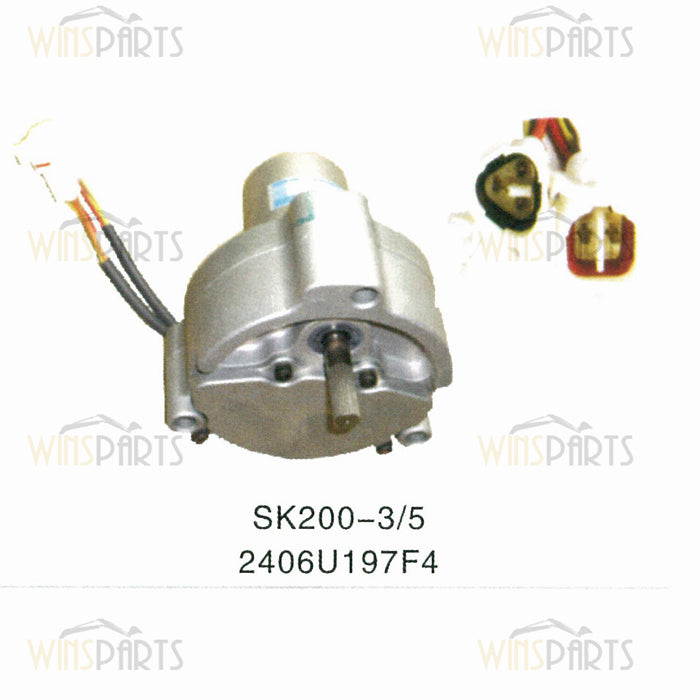

2406U197F4 2406U197F2 2406U197F3 GOVERNOR Throttle Step Electrical Motor Kobelco SK100-3 SK120-5 SK150LC SK200-5 SK300LC-5 Excavator Parts.
35 1 2418P51351 BRACKET (F3 Only), Start Year: 05/01/1998
34 1 2406R535 CABLE Kill Control, 3640mm Long (143-5/16 in), (F3 Only)
33 1 2406R1161 ROD (F2 & F3 Only)
32 1 2406R534 STOP (F2 Only)
31 1 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
30 1 2419R9D1 COTTER PIN OD 06mm x 21.2mm Long
29 1 ZW26X04000 LOCK WASHER ID 04 x OD 7.6 x Th 1.0mm -- (F1 & F2 Only)
28 NSS NOT SERVICED SEPARATELY
27 1 ZW16K04000 WASHER ID 04 x OD 08 x Th 0.8mm, (F1 & F2 Only)
26 1 ZN18C04003 NUT M04x0.7mm, (F1 & F2 Only)
25 1 ZS18C04014 BOLT M04x0.7x14mm, (F1 & F2 Only)
24 1 2418P51077 BRACKET (F1 & F2 Only)
23 1 2418P51076 Bracket, Years: 07/01/1997-05/01/1998
22 1 2420R1142 ROD M05x0.8x30mm Long, (F1 Only)
21 1 ZN18C05004 NUT M05x0.8mm
20 1 2406R531 CABLE Control, (F1 Only)
19 1 2432T4615 LABEL Decal -- 45x45mm Red triangle
18 3 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
17 4 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm
16 2 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm
15 1 ZN18C08007 NUT M08x1.25mm
14 1 2420T7359 NUT M08x1.25mm -- Left Hand Threads
13 3 ZN18C08007 NUT M08x1.25mm
12 1 ZN18C06005 NUT M06x1.0mm
11 1 ZS23C06025 SCREW M06x1.0x25mm
10 2 ZS18C06016 SCREW M06x1.0x16mm
9 4 ZS18C12025 SCREW M12x1.75x25mm
8 3 ZS18C10080 SCREW M10x1.50x80mm
7 1 YN11M01013D1 BALL JOINT M08x1.25x36mm Long
6 1 HR37C08000G1 BALL JOINT Replaces 2425R227D2, M08x1.25x45.5mm Long
5 1 2420T8999 ROD Lever
4 1 2406P5895 LEVER
3 1 2406T3587 LEVER
2 1 2416N7539 BRACKET
1-2 1 2406U197S5 SWITCH ASSY
1-1 1 2406U197R100 REPAIR KIT Gear, Incls. Refs. 1-2
Engine Control Assembly, 24100J18823F3, Start Year: 09/01/1997
Engine Control Assembly, 24100J18823F2, Years: 04/01/1997-09/01/1997
Engine Control Assembly, 24100J18823F1, Years: 04/01/1997-04/01/1997
1 1 2406U197F4 SMALL ELECTRIC MOTOR Accelerator Assembly, Incls. Refs. 1-1 & 1-2
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
