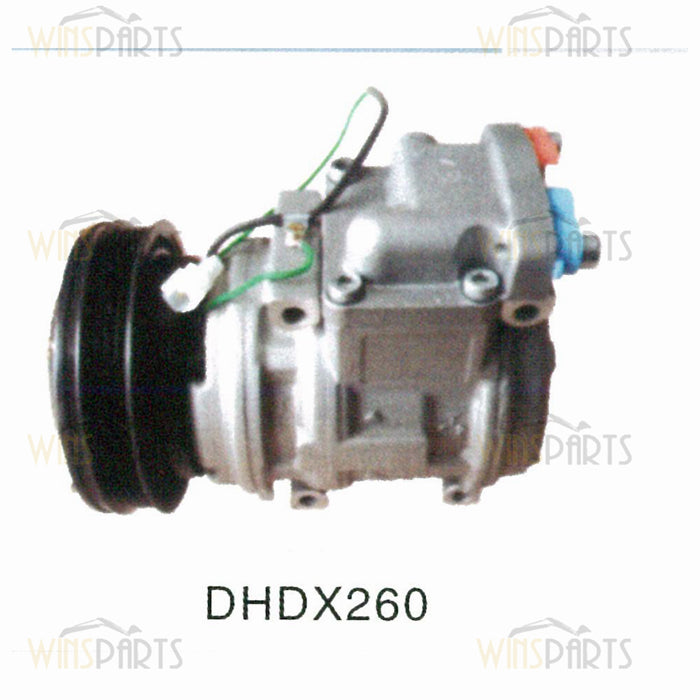

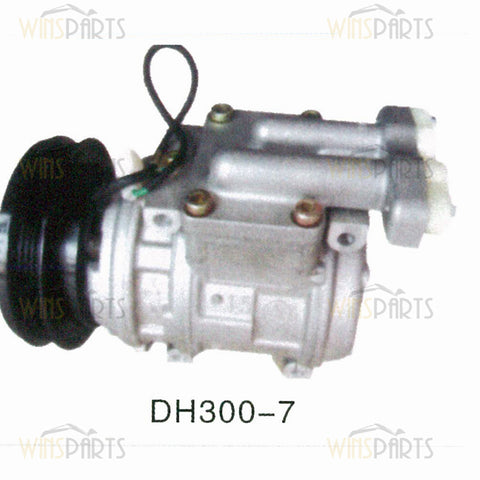

440205-00070 44020500070 AIR CONDITIONER COMPRESSOR ASSY A/C For Doosan Daewoo DX300LC DX340LC DX225 DX210 DX520LC Excavator Parts
440205-00070 44020500070 AIR CONDITIONER COMPRESSOR ASSY A/C For Doosan Daewoo DX300LC DX340LC DX225 DX210 DX520LC Excavator Parts
-. 440213-00468C [-]
-. K1009391A [-] AIR CONDITIONER(1)
1. 440205-00095 [1] CONDITIONER,AIR
1. 920-00127A [1] AIRCON UNIT 440205-00095
10. DS2228012 [2] ADAPTER
10. 2181-2774 [2] NIPPLE;HOSE DS2228012
11. 2181-1159 [1] ADAPTER
12. DS2809008 [4] CLIP
12. S8450016 [4] . CLAMP DS2809008
13. K1006960A [1] BRACKET;HOSE GUIDE
14. S5102503 [2] . WASHER
15. S0508866 [2] BOLT
16. 124-00208D7 [8] CLIP
17. K1001029 [7] BOLT
18. 547-00024A [1] SENSOR
2. S0508653 [6] BOLT
3. S5102503 [6] . WASHER
4. 2114-1058D29 [6] WASHER
5. S3450833 [4] BOLT
6. S5000213 [4] . WASHER
7. 2185-1308D9 [1] HOSE;RUBBER
8. 2185-1308D6 [1] HOSE;RUBBER
9. 2181-1113D2 [1] REDUCER
-. K1009392C [-] AIR CONDITIONER(2)
1. 543-00107 [1] CONTROL PANEL,AIR CON
10. S0557153 [4] BOLT M8X1.25X90
11. S5010513 [4] WASHER
12. S5102503 [4] . WASHER
13. 130710-00078 [1] PULLEY ASSY,IDLE
13. 2107-6006 [1] PULLEY ASS'Y;IDLE 130710-00078
14. S0512053 [2] BOLT
15. S5102603 [2] . WASHER
16. 520-00004 [1] CONDENSER,AIR CON
17. S0509353 [4] BOLT M8X1.25X35
18. S5102503 [4] . WASHER
19. 2114-1058D29 [4] WASHER
2. 300720-00003 [1] DRYER,RECEIVER
2. 2204-6039A [1] RECEIVER DRIER 300720-00003
20. K1010014B [1] HOSE;DISCHARGE
20A. 2180-6088 [1] O-RING(COMP)
20B. K1011384 [1] O-RING(CONDENSER)
20C. 1.161-00018 [1] CAP;CHECK PORT(H)
21. 185-00385B [1] HOSE;SUCTION
21A. 2180-6086 [1] O-RING(COMP)
21B. K1011385 [1] O-RING(EVAPORATOR)
21C. 1.161-00019 [1] CAP;CHECK PORT(L)
22. K1010013B [1] HOSE;LIQUID(1)
22A. K1011388 [2] O-RING
23. 185-00387A [1] HOSE;LIQUID(2)
23A. K1011388 [2] O-RING
24. K1009936 [1] BRACKET
25. 2106-1019D25 [1] BELT;AIRCON
26. DS0025013 [2] BOLT
28. S4012303 [2] NUT
29. S5000313 [2] WASHER
3. S0508866 [2] BOLT
30. S5102303 [3] . WASHER
31. S0504653 [1] . BOLT
32. 2114-1058D52 [1] WASHER
33. 2120-2187 [4] BOLT
34. S5102503 [4] . WASHER
35. 124-00208D3 [3] CLIP
36. 124-00209D1 [2] CLIP
37. K1001029 [4] BOLT
38. K1005017 [4] SPACER
4. S5102503 [2] . WASHER
5. 195-02803B [1] BRACKET;COMPRESSOR
6. S5010713 [4] WASHER;PLAIN
7. S5102703 [4] WASHER
8. S0786453 [4] BOLT;HEX.
9. 440205-00070 [1] COMPRESSOR
9. 2208-6013B [1] COMPRESSOR 440205-00070
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
