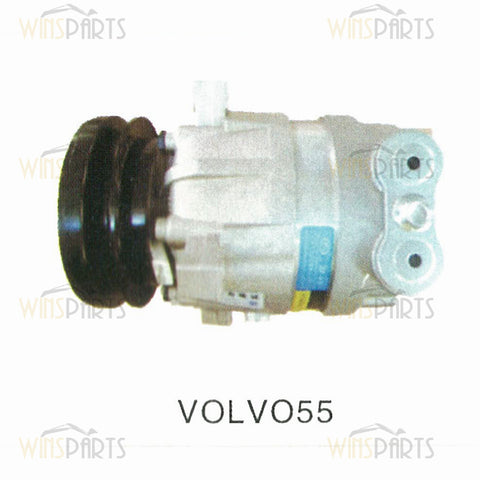

VOE14526228 VOE14526229 VOE 14526228 VOE 14526229 COMPRESSOR Assembly Air Conditioner A/C For Volvo EC55B EC55D EW55B Excavator parts
Product Description
-
Part Number:
-
Description:
-
Engine Brand: ISUZU/HINO/MISTUBISHI/YANMAR
-
Excavator Brand: New Holland KOBELCO/HITACHI/CAT/KOMATSU
-
Place of Origin:China/Japan
-
Packing: Original packing or Neutral packing
VOE14720502 Condenser Volvo.Heavy EC60D EC55B EC55C EW55B Condenser Excavator Air Conditioner Compressor A/C Condenser Evaporator Blower Air conditioning expansion valve Air Conditioning Ducts Control panel Servo motor
VOE14526228 VOE14526229 VOE 14526228 VOE 14526229 COMPRESSOR Assembly Air Conditioner A/C For Volvo EC55B EC55D EW55B Excavator parts
VOE14526228 VOE14526229 VOE 14526228 VOE 14526229 COMPRESSOR Assembly Air Conditioner A/C For Volvo EC55B EC55D EW55B Excavator parts
VOE14526341 [1] Air conditioning unit
1. VOE14526228 [1] Compressor
2. VOE14526229 [1] Condenser
VOE14616716 [1] Fan shroud WITH MOTOR and FAN
VOE14543095 [1] Wiring harness
3. VOE14619862 [1] Cooling system S/N -38926
VOE14692784 [1] Cooling system S/N 38927-
4. VOE14510152 [1] Electric motor S/N -38926
VOE14692785 [1] Electric motor S/N 38927-
SAC9823G1 [1] Sensor S/N 52666-, 38539-
VOE14620075 [1] Wiring harness
5. VOE14629995 [1] Resistor S/N 52666-, 38539-
5. VOE14529060 [1] Resistor S/N -52665, -38538
6. VOE14619863 [1] Valve
7. VOE14529270 [1] Hose
8. VOE14529264 [1] Hose
9. VOE14512724 [1] Washer
10. VOE14528506 [1] Adjusting device SER NO 30001-32441
VOE14528506 [1] Adjusting device SER NO 32442-
11. VOE14529025 [1] Bracket
12. VOE14529024 [1] Grommet
13. VOE14529049 [1] Hose
14. VOE14529050 [4] O-ring
15. VOE14529051 [1] O-ring
16. VOE14529052 [1] O-ring
17. VOE14526230 [1] Receiver drier
18. VOE14529282 [1] Hose
19. VOE14512724 [1] Washer
20. SA9817-12400 [1] V-belt
21. VOE14529263 [1] Hose
22. VOE14529012 [1] Hose nipple
23. VOE14529015 [1] Valve
24. VOE14529046 [2] Grommet
25. VOE14529155 [1] Relay
26. VOE14528972 [1] Heater
VOE14627031 [1] Heater
VOE14627033 [1] Fan
VOE14530767 [1] Resistor
27. SA9021-10403 [4] Cross recessed screw
28. VOE14880426 [4] Washer
29. SA9314-02300 [10] Cable tie
30. SA9315-03001 [2] Clip
31. SA9315-03601 [3] Clip
32. SA9316-03601 [1] Clip
33. SA9751-33606 [2] Grommet
34. VOE14881145 [2] Hose
35. VOE14525308 [1] Guard SER NO 30001-31173
VOE14525308 [1] Guard SER NO 31174- SER NO 50001-
36. SA9316-02402 [3] Clip
37. VOE14511415 [4] Clamp S/N -39090
VOE14690665 [4] Clip S/N 39091-
38. VOE14529278 [1] Contact
39. VOE946440 [3] Flange screw
40. VOE945407 [4] Flange nut
41. VOE984082 [1] Hex. socket screw
42. VOE983304 [2] Hexagon nut
43. VOE965175 [1] Flange screw
44. VOE983251 [1] Hexagon screw
45. VOE945444 [4] Flange screw
46. VOE983252 [2] Hexagon screw
47. VOE946471 [8] Flange screw
48. VOE997437 [1] Hexagon screw
49. VOE955922 [3] Spring washer
50. VOE14520096 [1] Bracket
51. VOE13955894 [2] Washer SER NO 30667- SER NO 50001-
1. VOE14556595 [1] Compressor MA8701
2. VOE14720502 [1] Condenser
3. VOE14612048 [1] Filter
4. VOE14591545 [1] Switch SE8701
5. VOE914515 [1] Retaining ring
6. VOE14882398 [2] Hose
7. VOE14708081 [1] Hose
VOE14727521 [1] Sealing ring
8. VOE14705795 [1] Hose
9. VOE14708085 [1] Hose
VOE14727521 [1] Sealing ring
10. VOE14706077 [1] Bracket
11. VOE14528506 [1] Adjusting device
12. VOE14529012 [1] Hose nipple
13. VOE14529015 [1] Valve
14. VOE14529046 [2] Grommet
15. VOE14529252 [2] Grating
16. VOE14713271 [1] Switch CU8701
17. VOE14881279 [1] V-belt
18. VOE14511415 [4] Clamp
19. VOE14610293 [1] Relay RE8701
20. VOE14880426 [4] Washer
21. VOE992040 [1] Plain washer
22. SA9314-02300 [REQ] Cable tie
23. SA9021-10403 [4] Cross recessed screw
24. SA9315-03001 [2] Clip
25. SA9316-03601 [4] Clip
26. SA9751-33606 [2] Grommet
27. VOE991637 [2] Hexagon screw
28. VOE13945407 [2] Nut
29. VOE946441 [4] Flange screw
30. VOE946471 [6] Flange screw
31. VOE955922 [3] Spring washer
32. VOE13965185 [1] Screw
33. VOE969405 [1] Six point socket screw
34. VOE984079 [2] Hex. socket screw
35. VOE60110353 [2] Washer
36. VOE13946934 [2] Screw
37. VOE984082 [1] Hex. socket screw
38. VOE14706078 [1] Bracket
39. VOE13971068 [2] Hexagon nut
40. [1] Climate housing
VOE14688883 [1] Cooling system
1. VOE14713213 [1] Case
2. VOE14713214 [1] Case
VOE14713215 [1] Cooling system
3. VOE959220 [1] Hex. socket screw
4. VOE14713216 [1] Evaporator
5. VOE14713217 [1] Pipe
6. SAC9823G1 [1] Sensor
7. VOE14557217 [1] Valve
8. VOE14691918 [2] Hex. socket screw
9. [1] Support
10. VOE14585357 [1] Fan MO8701
11. VOE14713218 [1] Resistor
12. SA9025-05002 [6] Cross recessed screw
13. VOE14713219 [1] Wiring harness
14. VOE14713220 [1] Sponge
15. VOE14713221 [2] Hose
16. VOE14880627 [2] Clip
17. VOE14591289 [2] Nut
18. VOE14713222 [1] Bracket
19. VOE14713223 [7] Nut
20. VOE14713224 [2] Relay
1. VOE14688883 [1] Cooling system
2. VOE14711641 [1] Bracket
3. VOE14502072 [1] Cover
4. VOE14529234 [1] Case
5. VOE14529233 [1] Duct
6. VOE14529242 [1] Spacer
7. VOE14529277 [2] Grille
8. VOE14528972 [1] Heater
9. VOE14529232 [1] Defroster hose
10. VOE992040 [2] Plain washer
11. SA9312-10200 [1] Hose clamp
12. VOE13945444 [4] Screw
13. VOE946440 [2] Flange screw
14. VOE946441 [6] Flange screw
15. VOE60113094 [2] Flange screw
16. VOE976945 [1] Washer
17. VOE13965187 [1] Screw
18. VOE14529024 [2] Grommet
19. VOE14711643 [1] Bracket
20. VOE14508096 [2] Knob
21. VOE14708082 [1] Sponge
22. VOE14708083 [1] Sponge
23. VOE14708084 [1] Sponge
24. VOE14712666 [1] Bracket
25. VOE14712667 [1] Bracket
26. VOE14712690 [1] Filter
27. VOE14712691 [1] Bracket
28. VOE14712694 [1] Bracket
29. VOE14713225 [1] Sponge
30. VOE947107 [7] Flange screw
31. VOE13946173 [1] Screw
Company Information
Wins (Gz) Machinery Co., Ltd. , is a professional excavator parts supplier who focuses on excavator parts selling. We have full list software for Caterpillar ,hitachi,komatsu,doosan,volve,hyundai,ect.Provide customers with professional technical service support。

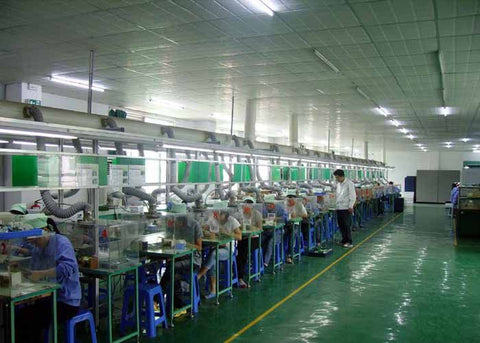

Factory Main production Sales excavator electric parts, such as sensor, throttle motor, controller, monitor, solenoid valve, wire harness，And other excavator accessories. Stable quality, good service and competitive price have been already won customers trust all over the world, including South America, Europe, Asia, North America.
We stick our principle of developing the quality and providing satisfactory service superior to the products, we always believe that products with good quality can help to built up good images, and with good service, valued customers will always stand by us. We sincerely hope to cooperate with you and build the stronger business relationship with each other.
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: |
Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: |
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: |
T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: |
When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
