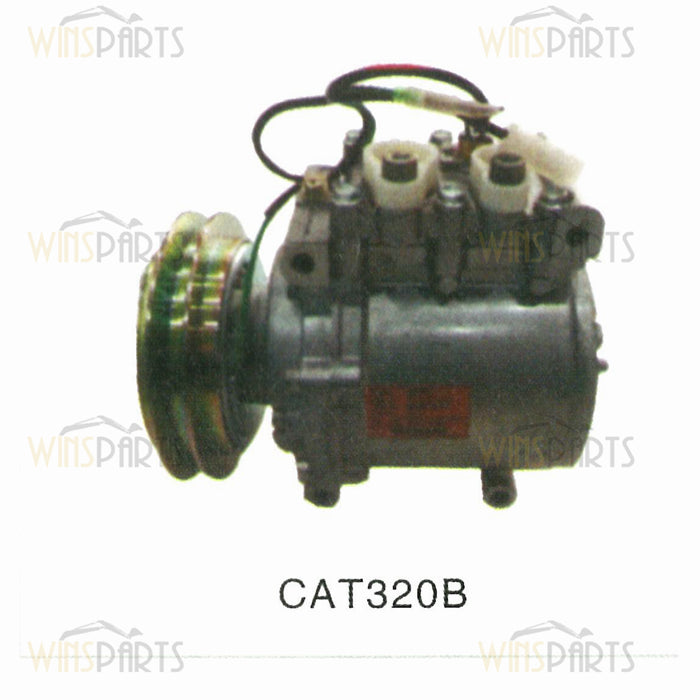

176-1895 1761895 COMPRESSOR Motor ASSY Air Conditioner AC Caterpillar CAT E320 312C 315C 318C 320C 322C Excavator Parts
171-9115: COMPRESSOR GP-REFRIGERANT
COMPRESSOR GP-REFRIGERANT
171-9115 COMPRESSOR GP-REFRIGERANT
S/N BKM1-UP; BLP1-UP
PART OF 171-9106, 171-9107 INSTALLATION AR-ENGINE
Type 1
1719115 COMPRESSOR GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 5M-8135 [1] V-BELT
2. 178-6616 [1] BRACKET AS-COMPRESSOR
3. 7Y-0589 M [1] BOLT (M12X1.75X90-MM)
4. 8T-4244 M [1] NUT (M12X1.75-THD)
5. 8T-4194 M [2] BOLT (M12X1.75X50-MM)
6. 5P-1076 [2] WASHER-HARD (13.5X30X4-MM THK)
7. 8T-3647 M [4] BOLT (M8X1.25X80-MM)
8. 8T-4224 [4] WASHER-HARD (8.8X16X2-MM THK)
9. 8T-4223 [2] WASHER-HARD (13.5X25.5X3-MM THK)
10. 8T-6868 M [2] BOLT (M12X1.75X80-MM)
11. 196-8094 [1] BRACKET AS-COMPRESSOR
12. 176-1895 [1] COMPRESSOR GP-REFRIGERANT
176-1920 [1] COIL AS
102-8802 [1] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
M METRIC PART
#SEBP31240864
171-9115: COMPRESSOR GP-REFRIGERANT
COMPRESSOR GP-REFRIGERANT
171-9115 COMPRESSOR GP-REFRIGERANT
S/N BKM1-UP; BLP1-UP
PART OF 171-9107 INSTALLATION AR-ENGINE
Type 2
1719115 COMPRESSOR GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 5M-8135 [1] V-BELT
2. 178-6616 [1] BRACKET AS-COMPRESSOR
3. 7Y-0589 M [1] BOLT (M12X1.75X90-MM)
4. 8T-4244 M [1] NUT (M12X1.75-THD)
5. 8T-4194 M [2] BOLT (M12X1.75X50-MM)
6. 5P-1076 [2] WASHER-HARD (13.5X30X4-MM THK)
7. 8T-3647 M [4] BOLT (M8X1.25X80-MM)
8. 8T-4224 [4] WASHER-HARD (8.8X16X2-MM THK)
9. 8T-4223 [2] WASHER-HARD (13.5X25.5X3-MM THK)
10. 8T-6868 M [2] BOLT (M12X1.75X80-MM)
11. 196-8094 [1] BRACKET AS-COMPRESSOR
12. 231-6984 [1] COMPRESSOR GP-REFRIGERANT
231-6985 [1] COIL AS (24-VOLT)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
M METRIC PART
#SEBP31240865
164-0480: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
164-0480 CONDENSER & MTG GP-REFRIGERANT
S/N BKM243-UP; BLP180-UP
PART OF 171-9107 INSTALLATION AR-ENGINE
Type 1
1640480 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 176-1891 Y [1] CONDENSER GP-REFRIGERANT
2. 8T-4137 M [4] BOLT (M10X1.5X20-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
M METRIC PART
Y SEPARATE ILLUSTRATION
#SEBP31240866
164-0480: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
164-0480 CONDENSER & MTG GP-REFRIGERANT
S/N BKM243-UP; BLP180-UP
PART OF 171-9107 INSTALLATION AR-ENGINE
Type 2
1640480 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 227-6838 CY [1] CONDENSER GP-REFRIGERANT
2. 8T-4137 M [4] BOLT (M10X1.5X20-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
C CHANGE FROM PREVIOUS TYPE
M METRIC PART
Y SEPARATE ILLUSTRATION
#SEBP31240867
176-1991: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
176-1991 CONDENSER & MTG GP-REFRIGERANT
S/N BKM1-242; BLP1-179
PART OF 171-9106 INSTALLATION AR-ENGINE
1761991 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 178-5620 [1] BRACKET AS
2. 8T-4196 M [2] BOLT (M10X1.5X35-MM)
3. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
4. 8T-4189 M [4] BOLT (M8X1.25X20-MM)
5. 8T-4224 [4] WASHER-HARD (8.8X16X2-MM THK)
7. 178-5618 [1] BRACKET AS
8. 164-0588 [1] CONDENSER AS
9. 8T-4133 M [2] NUT (M10X1.5-THD)
M METRIC PART
#SEBP31240868
176-1891: CONDENSER GP-REFRIGERANT
CONDENSER GP-REFRIGERANT
176-1891 CONDENSER GP-REFRIGERANT
S/N BKM243-UP; BLP180-UP
PART OF 164-0480 CONDENSER & MTG GP-REFRIGERANT
FIELD REPLACEMENT ORDER @@@@@262-9375@@@@@
1761891 CONDENSER GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 161-3732 [1] MOTOR AS
2. 161-3734 [1] RESISTOR AS
3. 196-1667 [1] CONDENSER AS
8T-4195 M [4] BOLT (M10X1.5X30-MM)
231-6807 [1] HOSE AS
262-9375 [1] CONDENSER GP-REFRIGERANT
4. 102-8803 [1] KIT-RECEPTACLE (3-PIN)
3E-3371 [1] WEDGE-RECEPTACLE LOCK (3-PIN)
5. 9W-0852 [3] PIN-CONNECTOR (14-GA TO 16-GA)
M METRIC PART
#SEBP31240869
227-6838: CONDENSER GP-REFRIGERANT
CONDENSER GP-REFRIGERANT
227-6838 CONDENSER GP-REFRIGERANT
S/N BKM243-UP; BLP180-UP
PART OF 164-0480 CONDENSER & MTG GP-REFRIGERANT
2276838 CONDENSER GP-REFRIGERANT Parts scheme
Parts for your 322C EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 161-3732 [1] MOTOR AS
2. 161-3734 [1] RESISTOR AS
3. 164-0499 M [1] NUT-FLANGE (M5X0.8-THD)
4. 164-0500 M [4] NUT-FLANGE (M8X1.25-THD)
5. 227-6846 M [8] BOLT AS
6. 245-7866 [1] CONDENSER AS
7. 245-7867 [1] HARNESS AS-WIRING (CONDENSER FAN MOTOR)
102-8803 [1] KIT-RECEPTACLE (3-PIN)
(RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
8. 245-7868 [4] BUSHING AS
9. 245-7869 [2] PACKING-RUBBER
10. 245-7870 [1] STRAP-CABLE
11. 245-7871 M [4] NUT-FLANGE (M6X1-THD)
12. 245-7876 M [3] BOLT AS
13. 245-7877 M [3] SCREW AS (M4X0.7X11-MM)
14. 245-7903 M [1] BOLT AS
15. 273-5307 [1] FAN AS-CONDENSER (4-BLADE)
M METRIC PART
